Generator Kit Ayerbe AVR 6000 H E autostart with battery and starter box (2601231)
Special kit for photovoltaic systems
|
|
Ayerbe
AYERBE Industrial Motors began its industrial activity with the manufacturing of generators in the year 1992 and currently holds the national leadership generators 2 KVA to 500 KVA. After its accumulated manufacturing experience have achieved premium products with high performance they have managed to satisfy and retain customers.
AYERBE manufactures its products with high technology and continuous innovation, having a distribution network and a technical team that guides and informs customers about new products and new solutions.
Ayerbe arise and develop products with the philosophy of total quality by adopting the slogan "the best is surmountable"
Secure Payment
SKU |
2601231 |
Category |
Power Tool , Tools , Electric Generators |

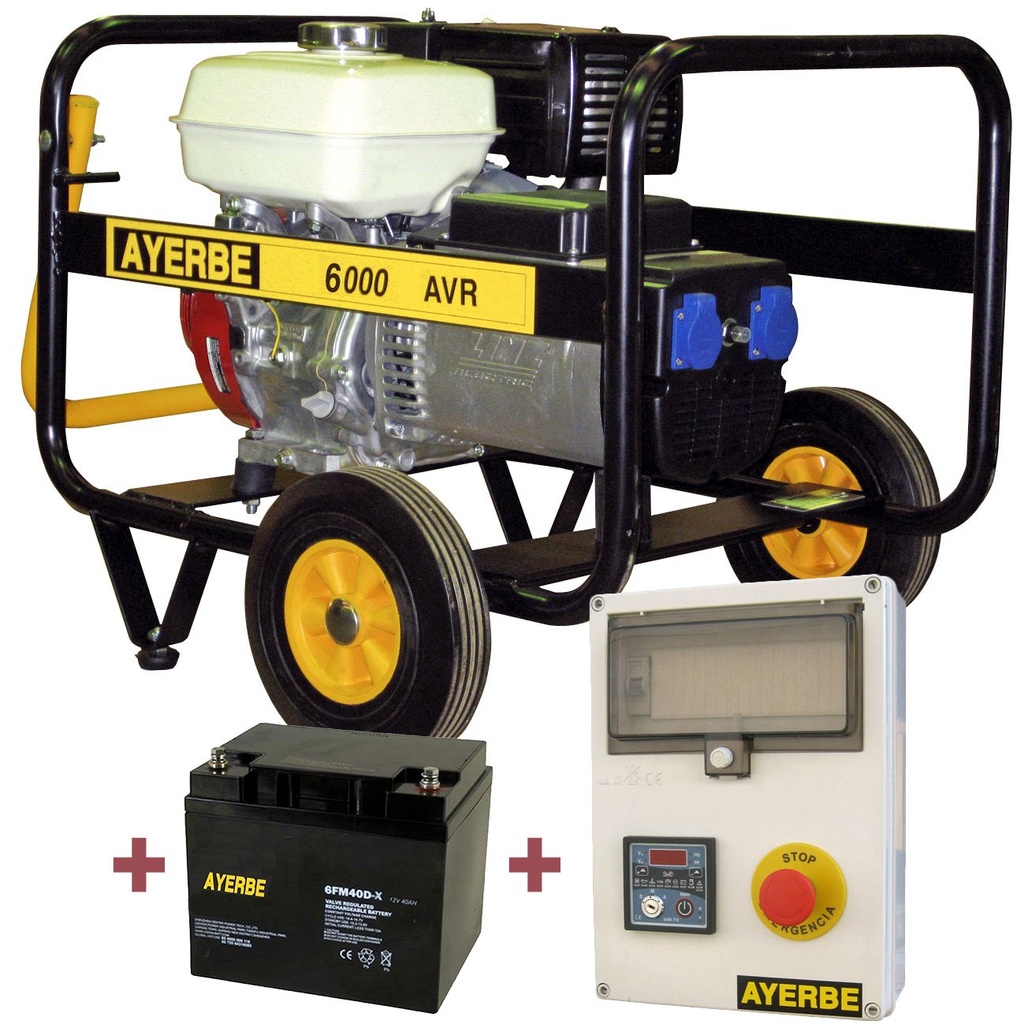

Generator Kit Ayerbe AVR 6000 H E autostart with battery and starter box
Kit autostart generator suitable for photovoltaic installations if the investor need electronic regulation. 12V 40Ah batterie and signal box boot.
The kit includes:
1. Generator Ayerbe 6000 H AVR E Honda engine electric start
Features of the generator:
- Engine: HONDA GX-390 390 cc 13 HP 4 stroke
- Alternator: LINZ E1S10 L1E
- .: 5600 W. Max power
- Nom .: 5000 W. Power
- Voltage: 230 V // 50 Hz.
- Consumption: 2.3 L / H (75%)
- Deposit: 6.5 L.
- Sound level: 97 dB.
- Weight 85 kg.
- Electrical start
- Dimensions: 950 x 746 x 625 mm.
Voltage regulation system AVR. In all 3,000 rpm gensets it is possible to assemble alternators electronic voltage regulation. This system is suitable for use with electronic equipment or tools regulation.
Furthermore always it provides the output MN 230 V and 400 V. TX to without depending on the load. The nominal power in groups including this system is reduced by about 10%.
Characteristics of the engine:
- Manufacturer: HONDA
- Model: GX 390
- Nominal power: 13 Cv
- Displacement: 390 cm3
- Cooling System: Air
- Type of engine oil: SAE 20 W 40 / IPE grade CD, CF
- Aspiration: Natural
- RPM of the engine: 3,600 rpm
- Fuel: Gasoline
- Fuel consumption at 75%: 2.1 L / H
- Oil Capacity: 1.1 L
- Starting system: Electric
2.- Battery 12V 40AH for generators to 20KVA AYERBE
Lead-acid battery 40Ah 12V for all AYERBE electric starter generators with up to 20 KVA
Table 3. boot signal SIG 713 AYERBE
Control box boot external signal
- Electric Start: allows start / stop button manually.
- Automatic startup: allows boot free power contact (for external signal cable, clock, antenna ...)
Control card model SAM713
Control instruments: voltmeter, hour meter, battery voltage, frequency
Security instruments. Off alarms: lack of oil pressure, high temperature or motor overspeed. Warning alarm: maintenance control.
Usable in groups of 5-40 KVA
Dimensions: 325 x 240 x 120 mm.
Option: analog / digital clock.
Option: control antenna
| Brand | Ayerbe |
