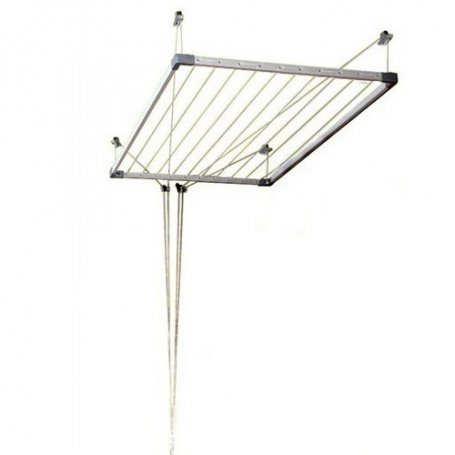

Tezno-ceiling clothesline extensible Cuncial

Rack aluminum adjustable width between 100 and 160 cm ceiling height - adjustable thanks to its pulley mechanism driven by a recogecintas placed on the wall. In this way we can save space and build a comfortable way, as for hanging clothes will suffice down the clothesline to the desired height and once placed all the laundry, we can upload the clothesline toward the ceiling out of the way while dry clothes. easily it supports up to 12 kg of laundry in total length lying between 16 and 19 meters.

The mounting kit includes everything needed to assemble the drying rack and place it in the simplest way.

Unboxing Tezno Techo Cuncial:

Assembly instructions:

• Introducing tubes in 4 plastic brackets. (Fig. 1)
• Pressing on the corners to make sure the tube is inserted to the stop. (Fig. 2)
• Insert the narrow perforated bars with screws and adjust to the desired length. (Fig. 3)
• Use thick rope roll to roll out clothes.
• Use drying as template to mark the points where they put the plugs onto the ceiling (fig. 4)
• Enter these four simple pulley blocks. (Fig. 5)
• Place two wall studs, a distance between 6 and 10 cm. roof, with a spacing of 6 to 8 cm between them, introducing the double pulleys. (Fig. 6)
• Vertical these two pulleys, and about 70-80 cm. soil, place the tape collector. (Fig. 7)
• Four simple guide pulleys in the direction of the double pulleys. (Fig. 8)
• Cutting roll thinnest string into four parts (two of four meters and two 3.5 meter) and hold them by the drying holes angles (fig. 9)
• Passing the rope pulleys simple (fig. 10) and then by the corresponding double pulley.
• Raising the clothesline ceiling and hold the ropes tie dustpan in retracted position.

.
