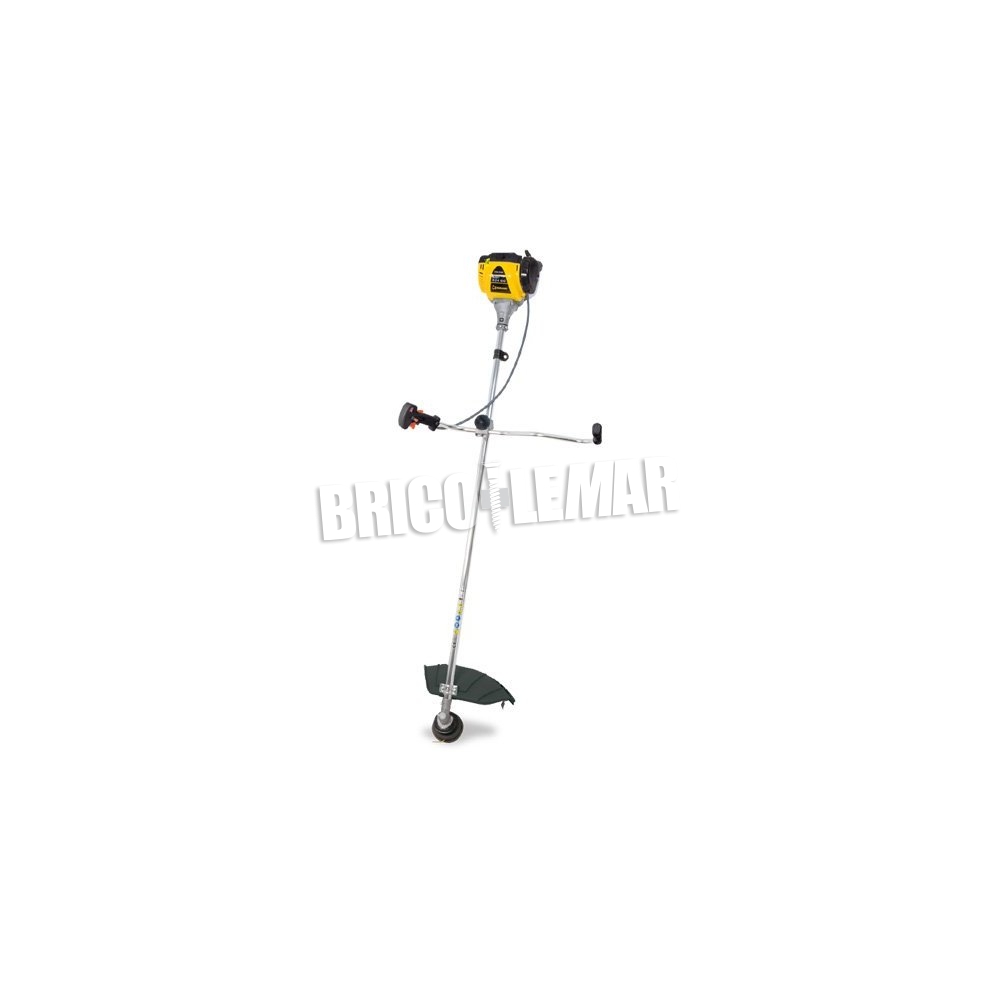

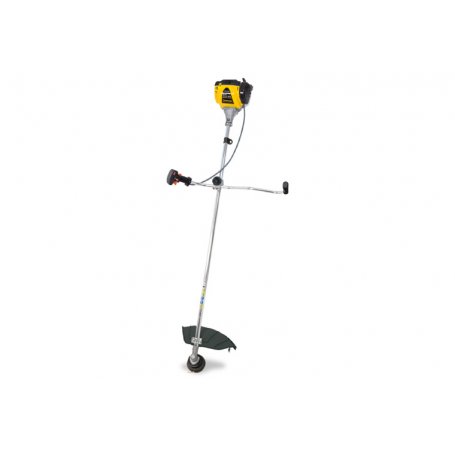

Gasoline brush cutter Garland 524 QG-V16 BEST
Brushcutter Garland with 4-stroke engine of 31 cc. comfortable and easy machine having anti-vibration transmission 28 mm, adjustable and foldable handlebar ergonomic system. Includes disc 3 point, line head Nylon, double harness.
KEY FEATURES
PRIMER PRIMER
quick start
Efficient primer "primer", which pumps fuel to the carburetor engine, favoring cold start.
ROD DIAMETER OF 28 MM
more efficiency
Firmness providing greater width of the transmission rod allows confidently face the most intense work.
float: left; margin-right: 5px; margin-bottom: 3px; "src =" https://www.bricolemar.com/img/cms/manillar_doble.jpg "alt =" Automatic greasing "" width = "110" height = "88" />

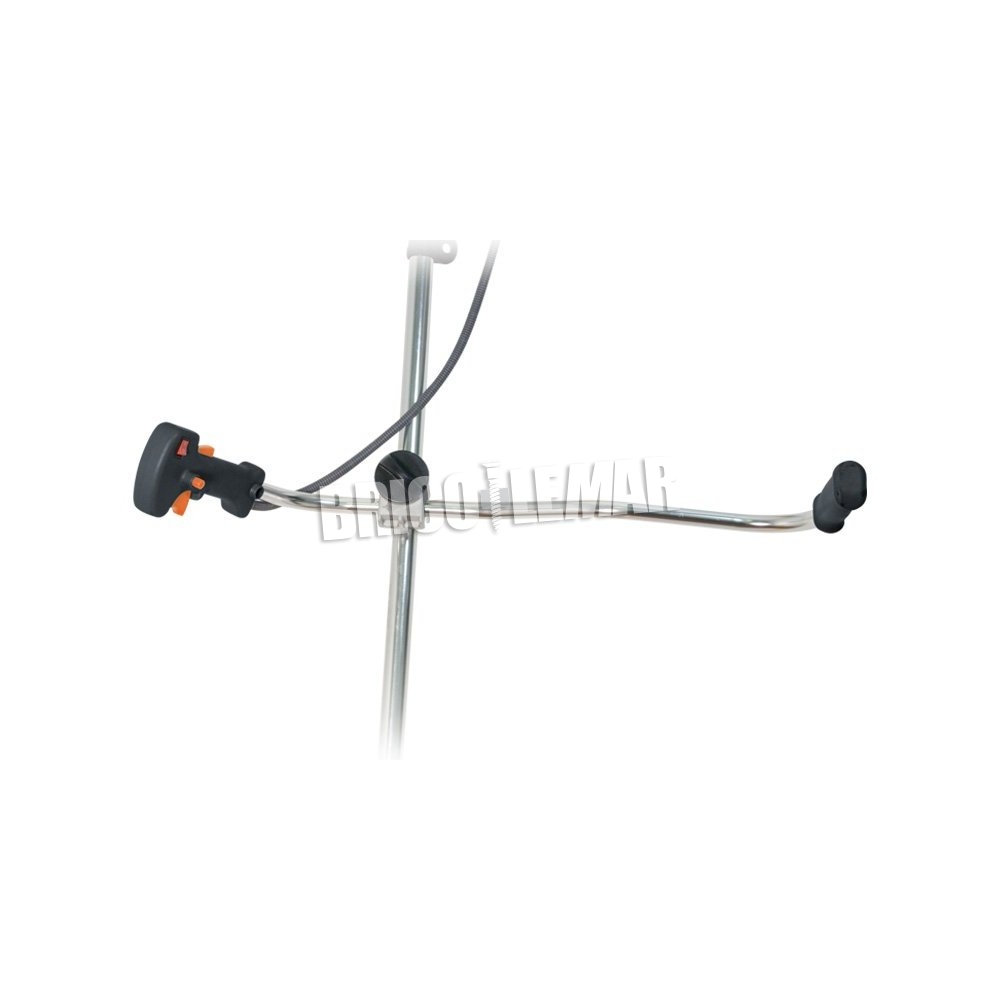

DOUBLE MANILLAR (GIRO 90 °)
It suits you
double handle for comfortable use and aga rre firmer. Orientable 90 ° for easy transportation and storage.

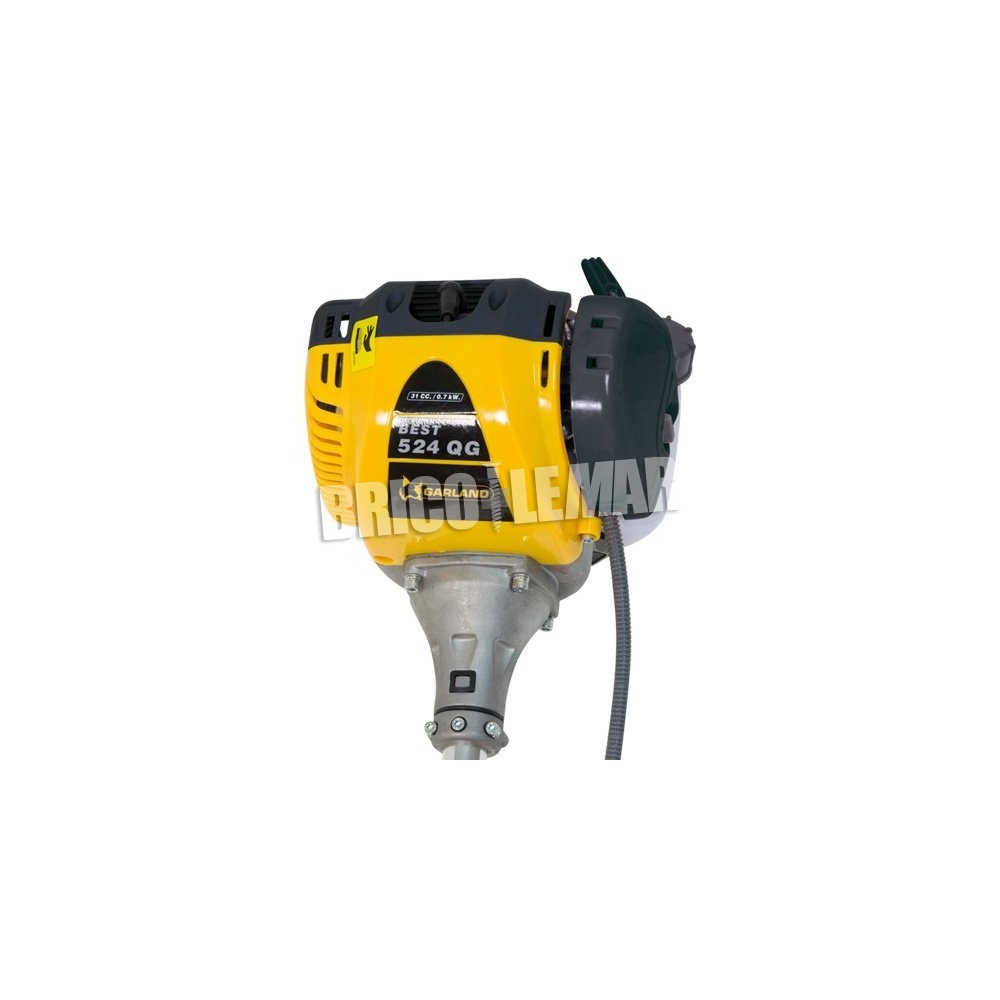

4 - stroke engine
At your own pace
4-stroke engine
Anti - vibration system
goodbye fatigue
Decisive anti-vibration system, which reduces fatigue and makes much more enjoyable tasks.
Unpacking and BOM
This machine includes the following items you find inside the box:
- Machine.
- Protective.
- Handlebar.
- Tools.
- Cutting accessories.
- Harness.
- Manual.
Technical specifications:
| Motor | 4 strokes | ||
| displacement | 31 cc | ||
| maximum power | 0.75 Kw | ||
| Revving the engine idling | 2800-3200 min-1 | ||
| Maximum speed of the engine | 10,000 min-1 | ||
| Maximum speed of the tool axis | 7800 min-1 | ||
| Fuel consumption at maximum power | 480 g / kW | ||
| Tank capacity | 0.9 cm3 | ||
Tool | Cutting diameter | Nylon thread | 430 mm |
| Thickness | Nylon thread | Ø 2.4 mm | |
| Number of cutting edges | Nylon thread | Two flexible wires (nylon cutting head) | |
| Cutting speed limit | 10,000 min-1 | ||
| Vibration levels | ≤ 15 m / s2 | ||
| Sound pressure level (EN 27917) | LpA ≤ 102 dB (A) | ||
| Guaranteed sound power level (ISO 10884) | ≤ 100 LwA (dB (A) | ||
| Dry weight (without gasoline, without cutting tool without protector) | 4.3 Kg. | ||
