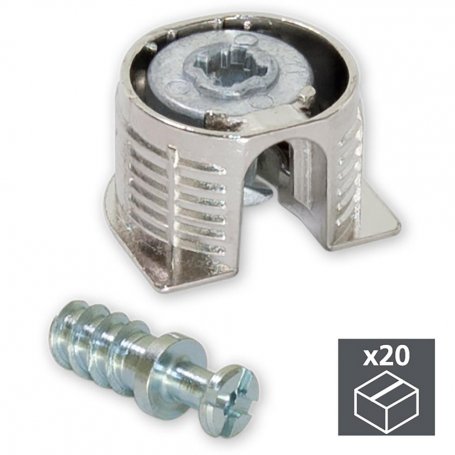

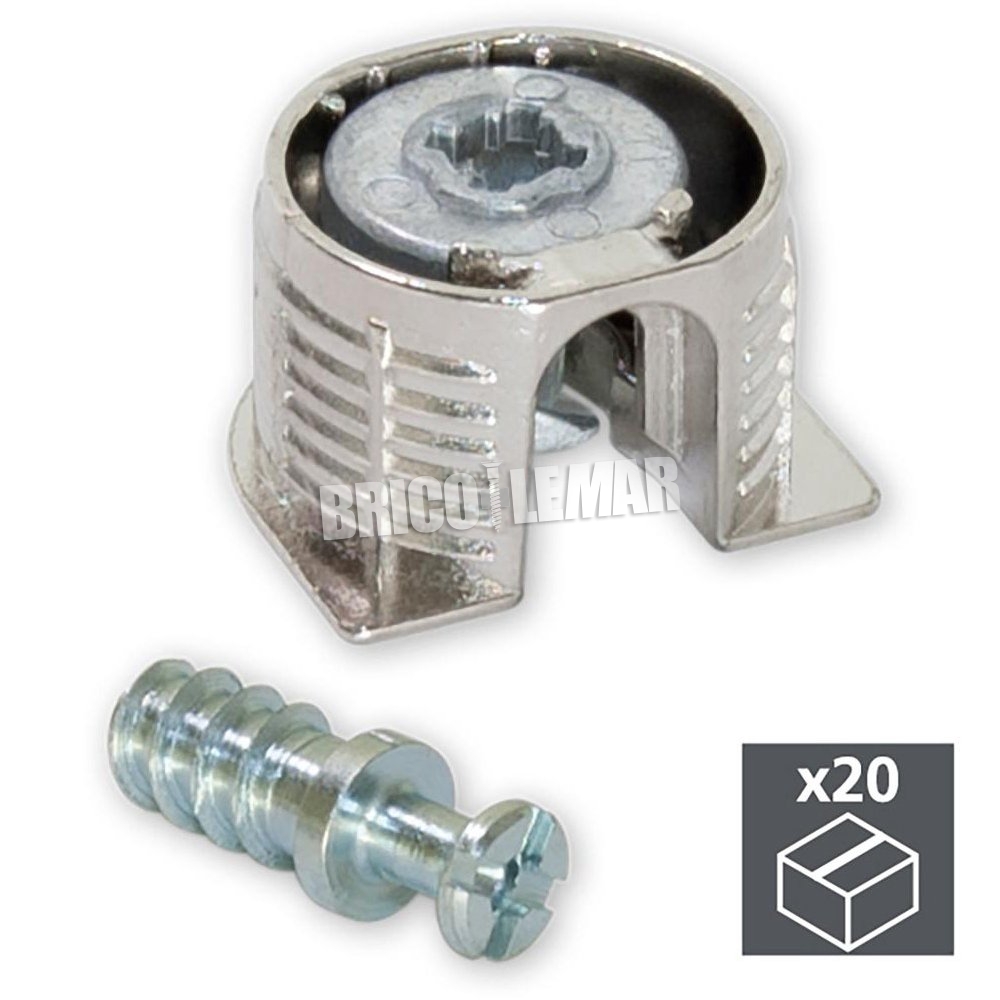

Lot 20 hooks for fixing shelves Fix Ø 20mm 12.5mm, bolts or 6 8mm + Emuca

Fix the bowl attachment serves for fixing and securing shelves and shelves in cabinets, shelves and home furnishings. They provide a solid support and resistant shelves being hidden hooks. They are valid for a minimum thickness of 16 mm board as is necessary for assembly prior machining diameter 20 mm and depth 13 mm. In this way they are embedded in the bottom on the shelf. The shelves are placed from above and in front, with hooking pin on the side of the cabinet. The latches are made of zamak with nickel finish and bolts galvanized steel with finishing turning.

Features hitch:

• Hooks for fixing shelves in cabinets, shelves and home furnishings.
• They are used for fastening the shelves being hidden and embedded in the board.
• The hooks are placed on the bottom of the shelf and bolts on the side of the cabinet.
• They are allowed to place the shelves from above and from the front, hooking pin on the hitch.
• It is valid for board thicknesses of 16 mm minimum.

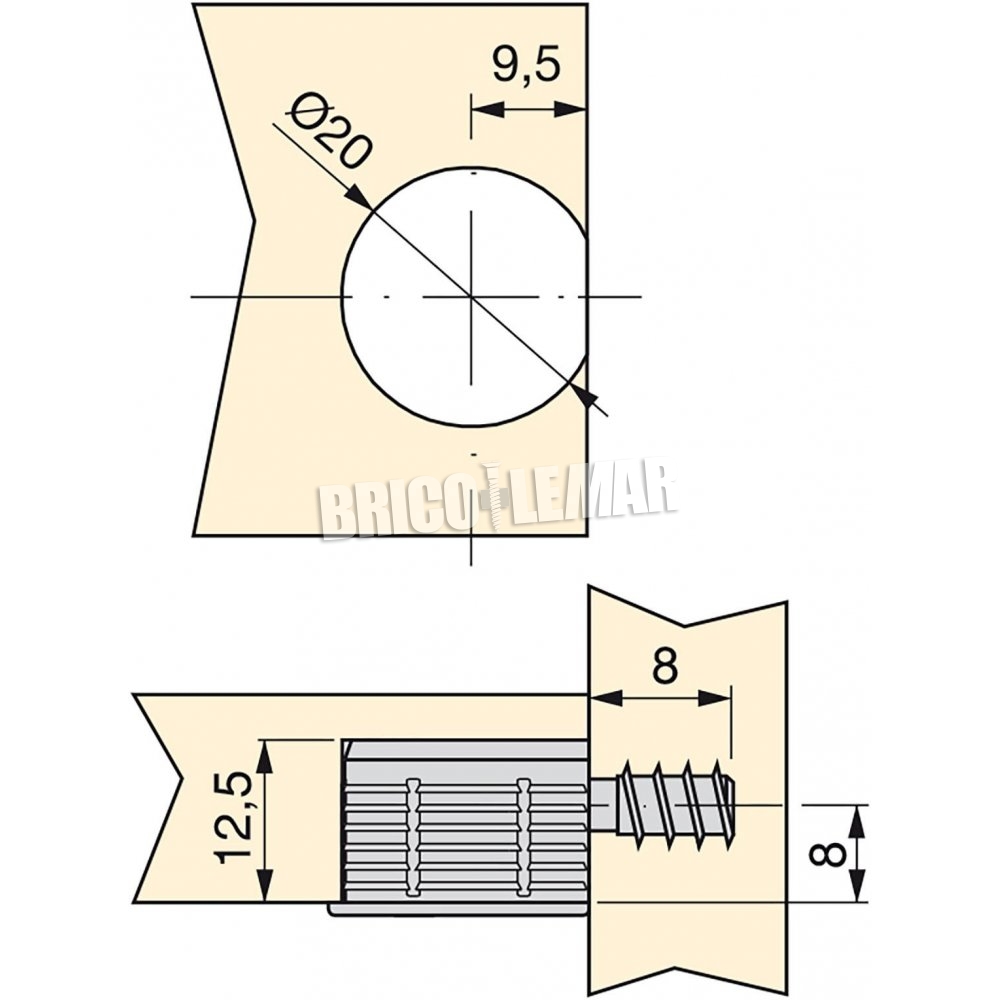

• Necessary for assembly prior machining diameter 20 mm and depth 12, 5 mm.

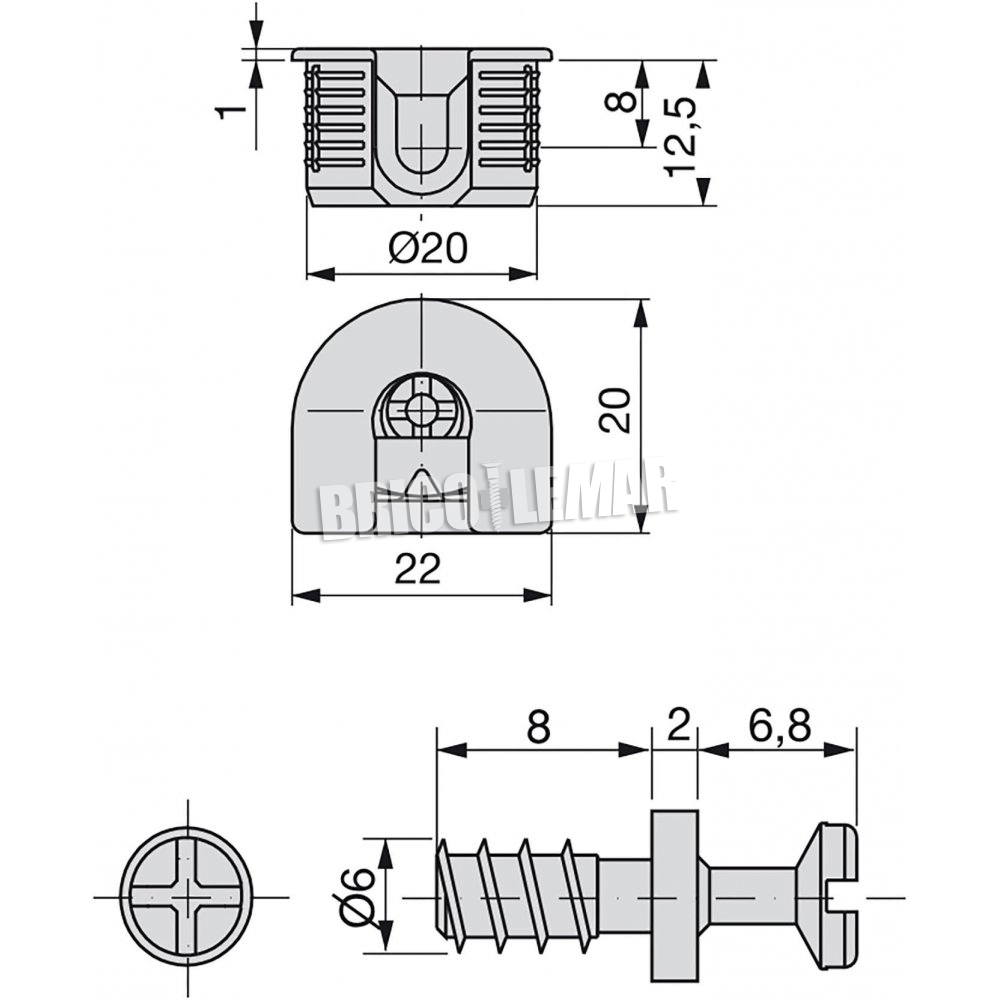

• In addition the bolts have a diameter of 6 mm and 8 mm thread.
• You need to place four catches per rack, two on each side.
• The latches are made of zamak with nickel finish and bolts galvanized steel with finishing turning.
