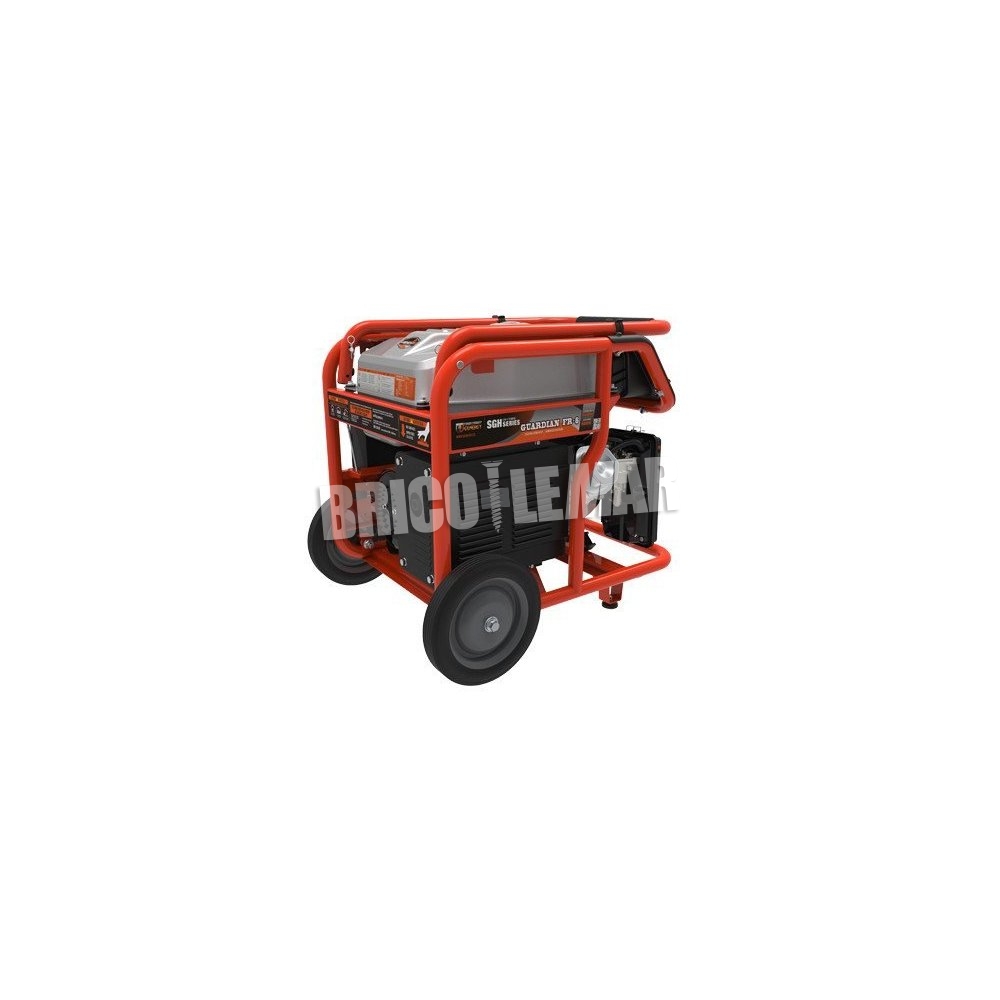

generator Genergy Guardian FR6 6500W 230V Start E-171cc
Autostart for network failure
GE-2013025 | |
- |
Download
More info

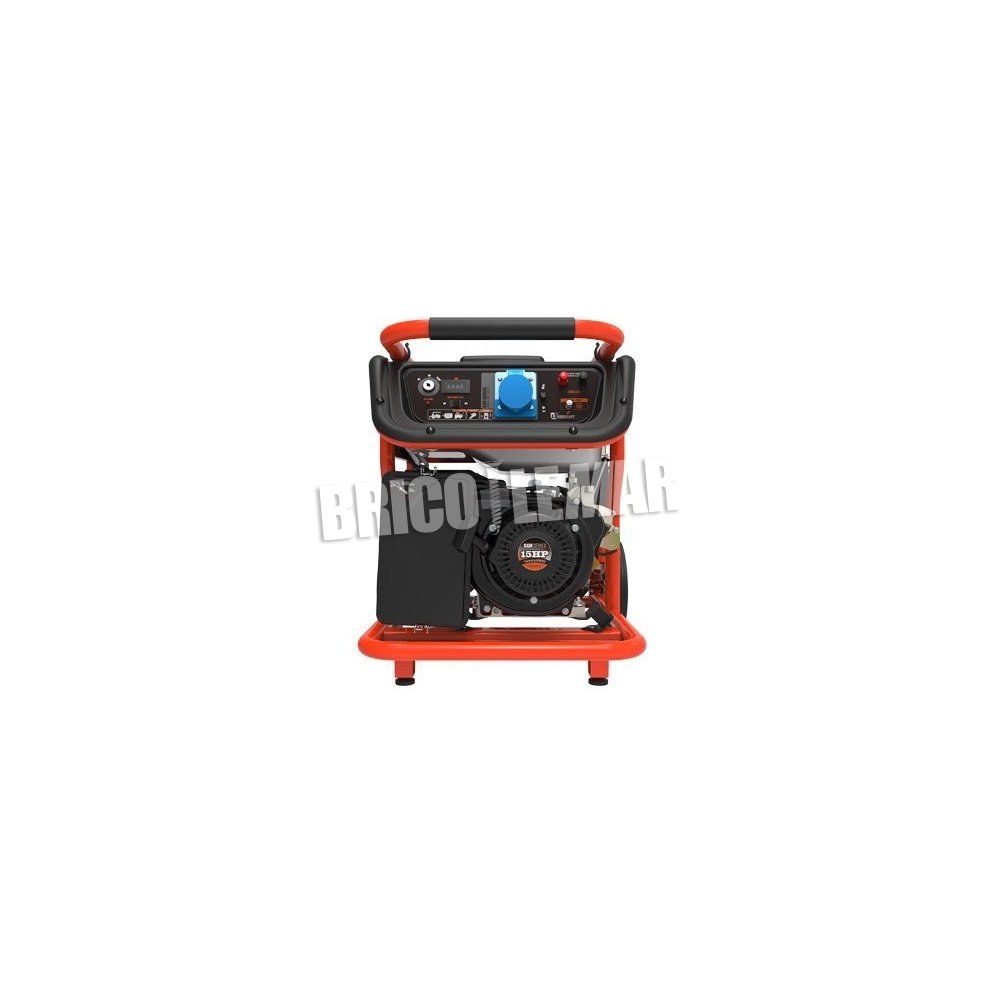

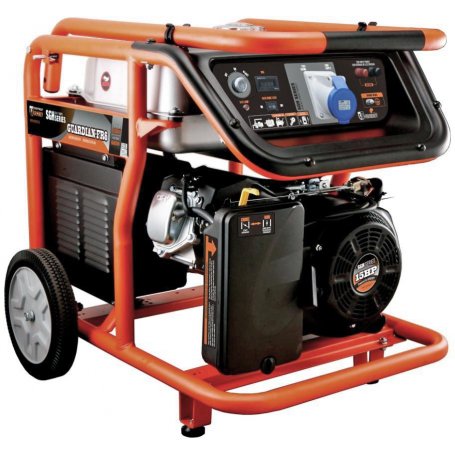

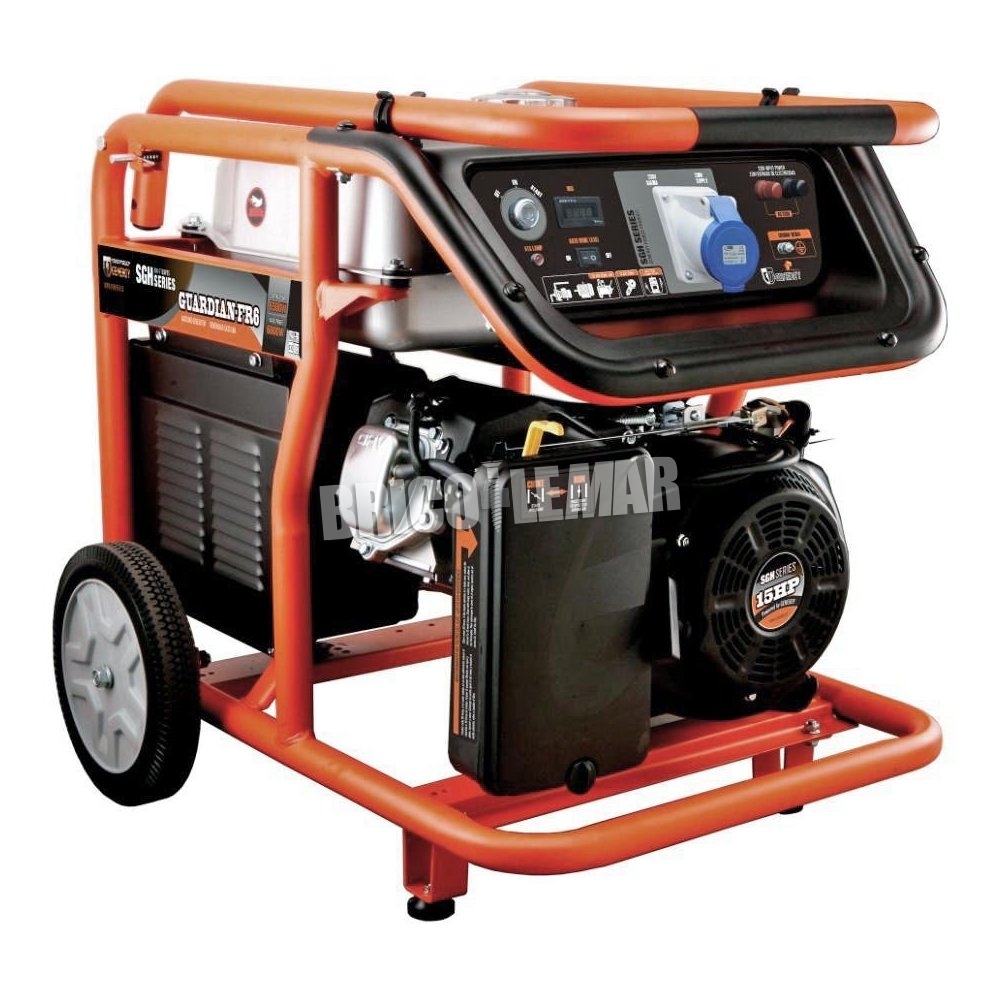

Generator Genergy Guardian FR6 6500W 230V Start E-171cc
Powered generator OHV 4-stroke 420cc, efficient and highly reliable, ensuring easy and smooth start in any condition.
Guardian Generator FR6 outstanding performance:
- Manual rope and electrical turnkey starter battery included gift *
- Autostart system integrated network fault, does not need external transfer box.
- New electronic throttle ensures fast and accurate automatic start mode failure.
- Fully automated process boot sequence up to 5 start attempts.
- Charger / maintainer integrated battery ensures optimum battery charge status at all times.
- Automatic shutdown for lack of oil, protects the motor from serious damage in case of no or low level of lubricating oil.

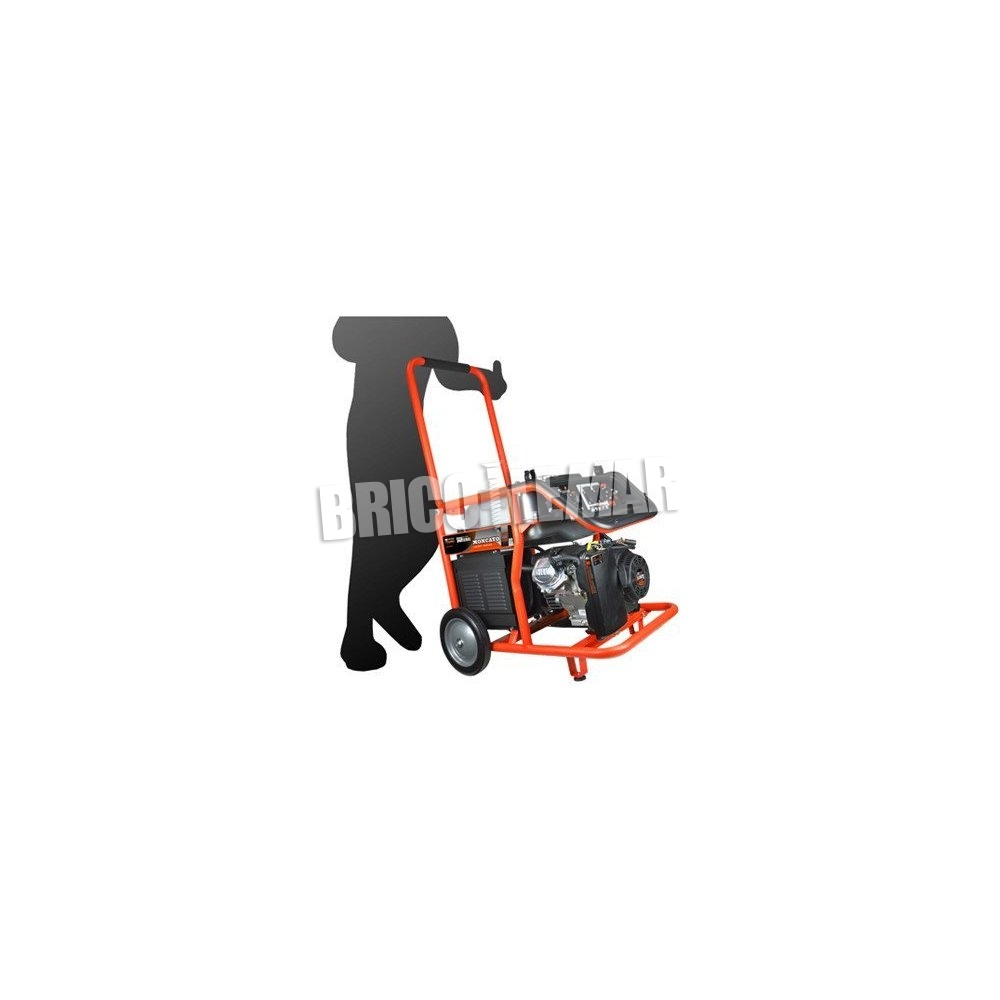

- Frame "ZERO GRAVITY", enables movement of the generator with minimal effort.
- Fuel tank large capacity (28L), Greater autonomy with less fill-ups.
- Alternator all copper winding quality, longer life, greater startability of inductive material, the greater tolerance to overcharging or over temperature, infinitely more resistant to environmental etch.
- Electronic voltage regulation ensures a correct and stable voltage at all times.
- 2 bases monophasic delivery 16Ah and 32AH.
- Overload protection by thermal circuit breaker. Protects equipment from overload.
- digital panel indicator Output voltage, frequency and working hours, it controls at all times the output parameters. Hours of use controls to manage preventive maintenance plan properly.
- Genergy total guarantee 2 years including labor, transportation and spare parts **.
* The battery is delivered free of charge and is not included in the price of the machine therefore it is not covered by warranty. If you do not want to receive the battery indicate gift to deploy your order.
** 1 year warranty for the machines invoiced to companies, cooperatives, partnerships or any other particular consumer different legal character.
Technical characteristics FR6 Generator Guardian:
Tested according to EN12601: 2010: generators powered by combustion engine.
Under 2006/42 / EC Machinery
Pursuant 2006 / 95EC Low Voltage
Under 2004/108 / EC Compat ibili electromagnetic dad.
Under 2000/14 / EC (amendment 2005/88 / EC) sound emissions outdoor equipment in the stage II in June 2006.
| Regulation - Voltage - Frequency: | electronic ballast - 230V - 50Hz |
| Maximum AC 230V: | 6500W |
| AC 230V Nominal: | 6000W |
| Engine model: | SGH series 15HP |
| engine displacement: | 420cc |
| Type of motor: | 4 stroke OHV forced air cooling. |
| Average sound pressure level LpA to 7mts: | 74dB (A) |
| Guaranteed sound power level LwA according 2000/14 / EC amendment 2005/88 / EC: | 97dB (A) |
| Startup type: | Manual-Electric-automatic mains failure |
| Fuel tank capacity: | 28L |
| Time consumption - Autonomy 25% 50% 75% load: | (1.6 l / h - 17.5h) (1.9 l / h - 14.7h) (2.5 l / h - 11.2h) |
| Oil capacity - oil type: | 1,1L 10W40 - 10W40 |
| Transport Kit | If, with rubber tires 10 "and metal rim. |
| Dimensions L x W x H: | 70 x 53 x 59/75 x 67 x 68 |
| Machine weight / gross packaging: | 96/99 Kg. |

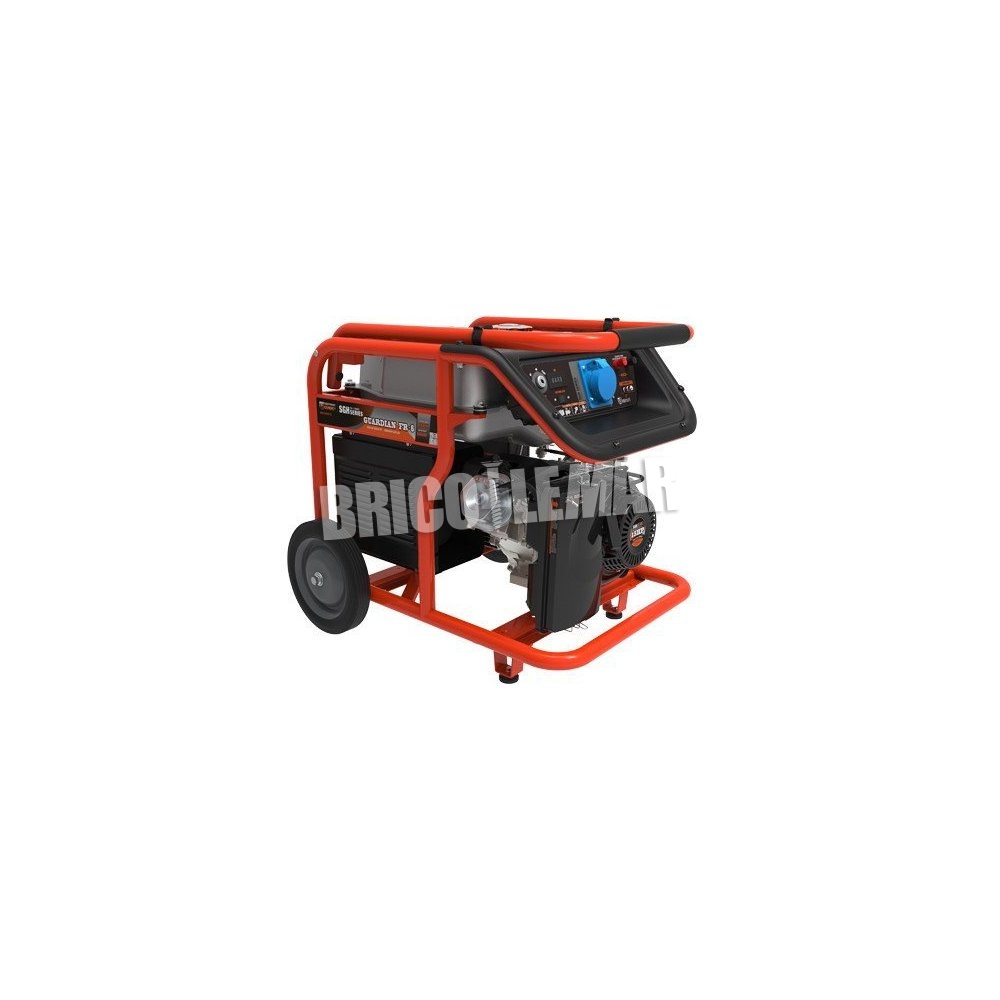

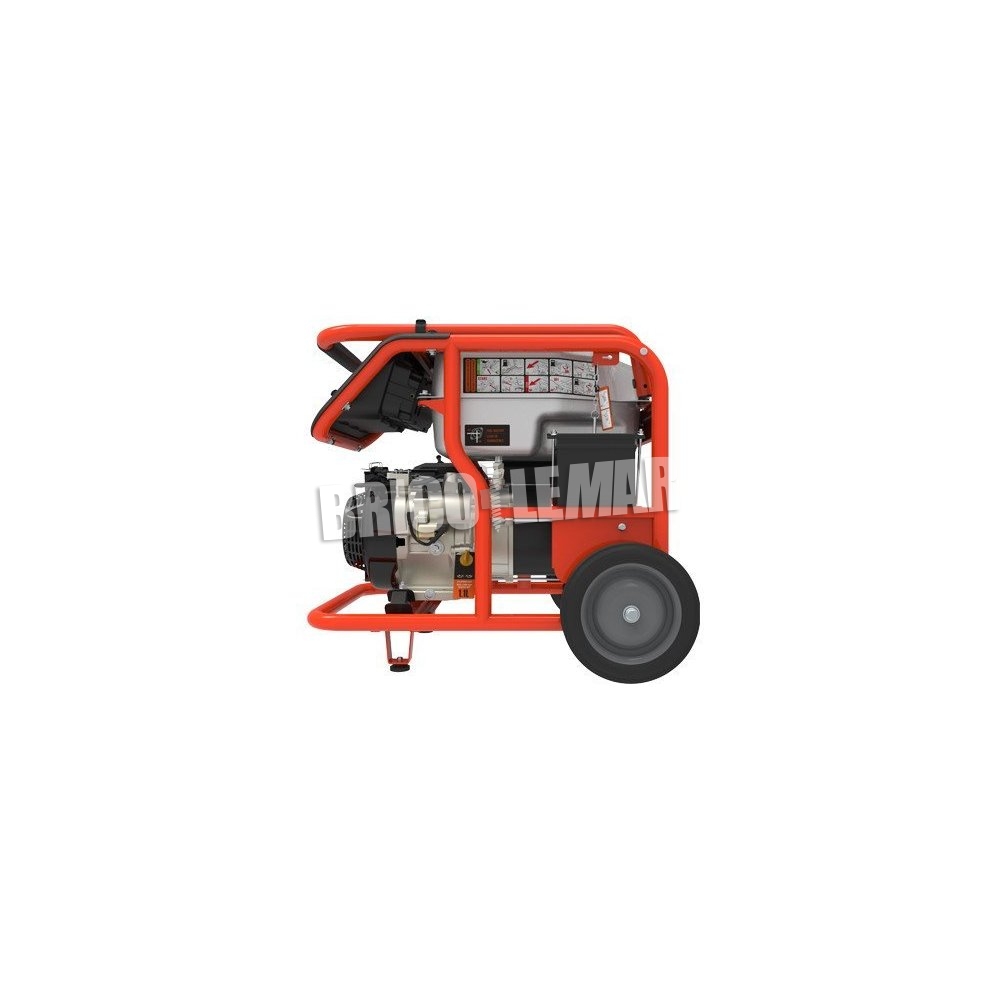

360 Vista Guardian Generator FR6:
