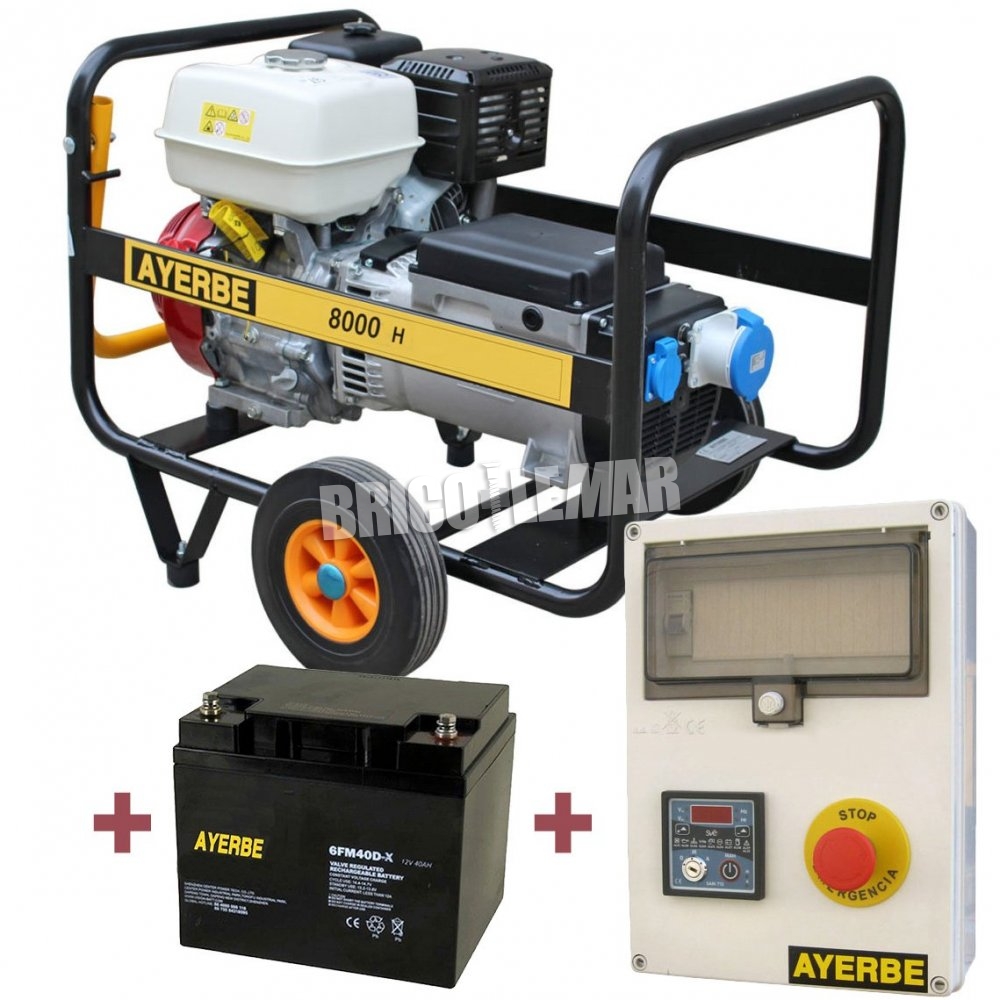

Generator Kit Ayerbe 8000 H MN autostart with battery and starter box

Kit autostart generator suitable for photovoltaic installations. 12V 40Ah batterie and signal box boot.

The kit consists of the following elements:

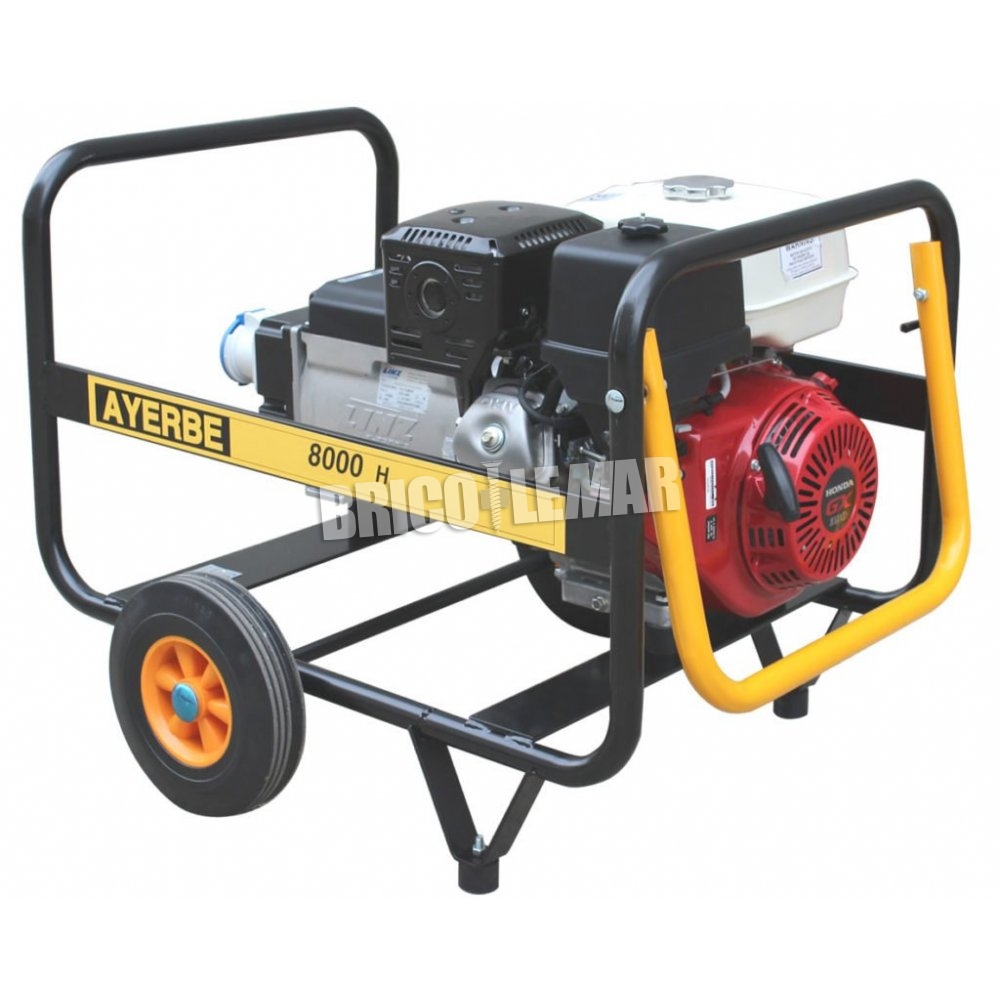

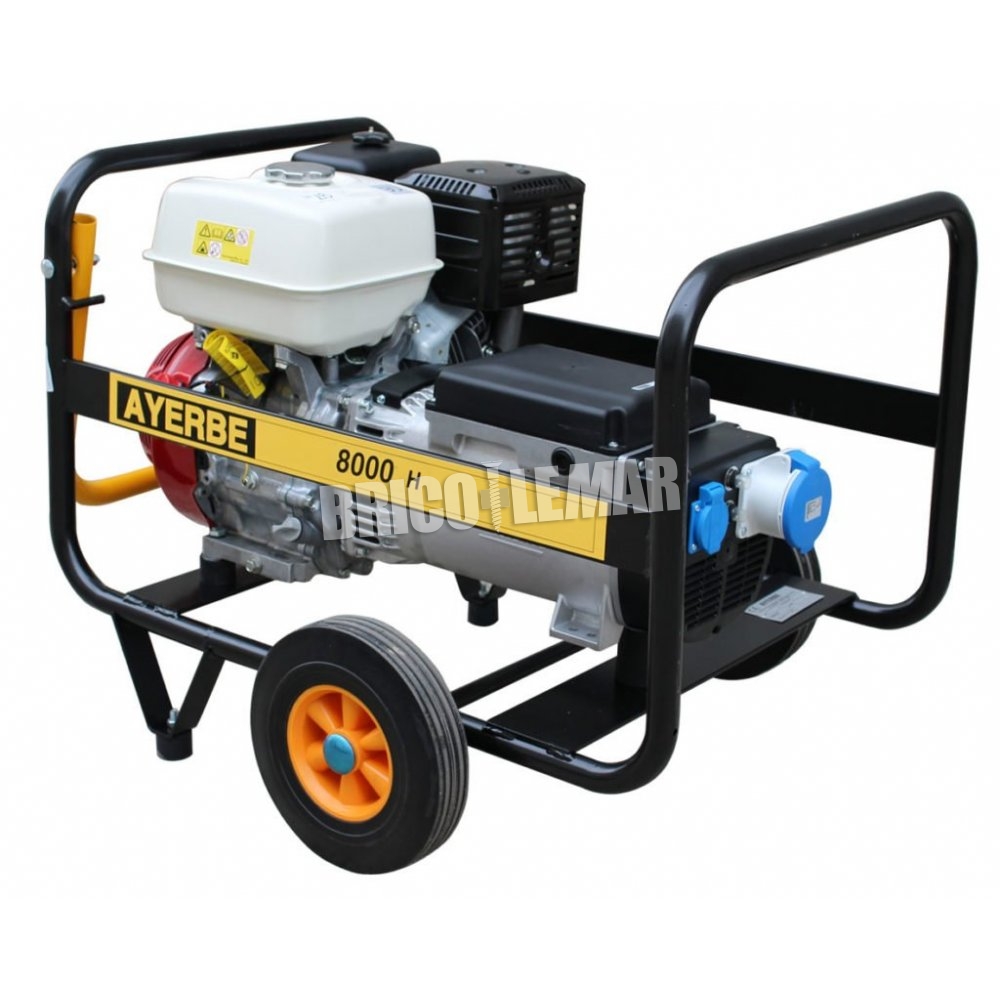

1. Generator Ayerbe H MN 8000 Honda engine electric start

Features of the generator:

• Engine: HONDA GX-390 (E.) HP 390 cc 13 4 times
• Alternator: LINZ E1C10 MI
• Power max .: 8 KVA // 6400 W.
• Power nom .: 7 KVA // 5600 KVA.
• Voltage: 230 V / 50 Hz.
• Consumption: 2.1 L / H (75%)
• Deposit: 6.5 L.
• Sound level: 97 dB.
• Weight: 93 kg.
• Electrical start
• Dimensions: 970 x 720 x 660 mm.

Generators with electric starter not include battery

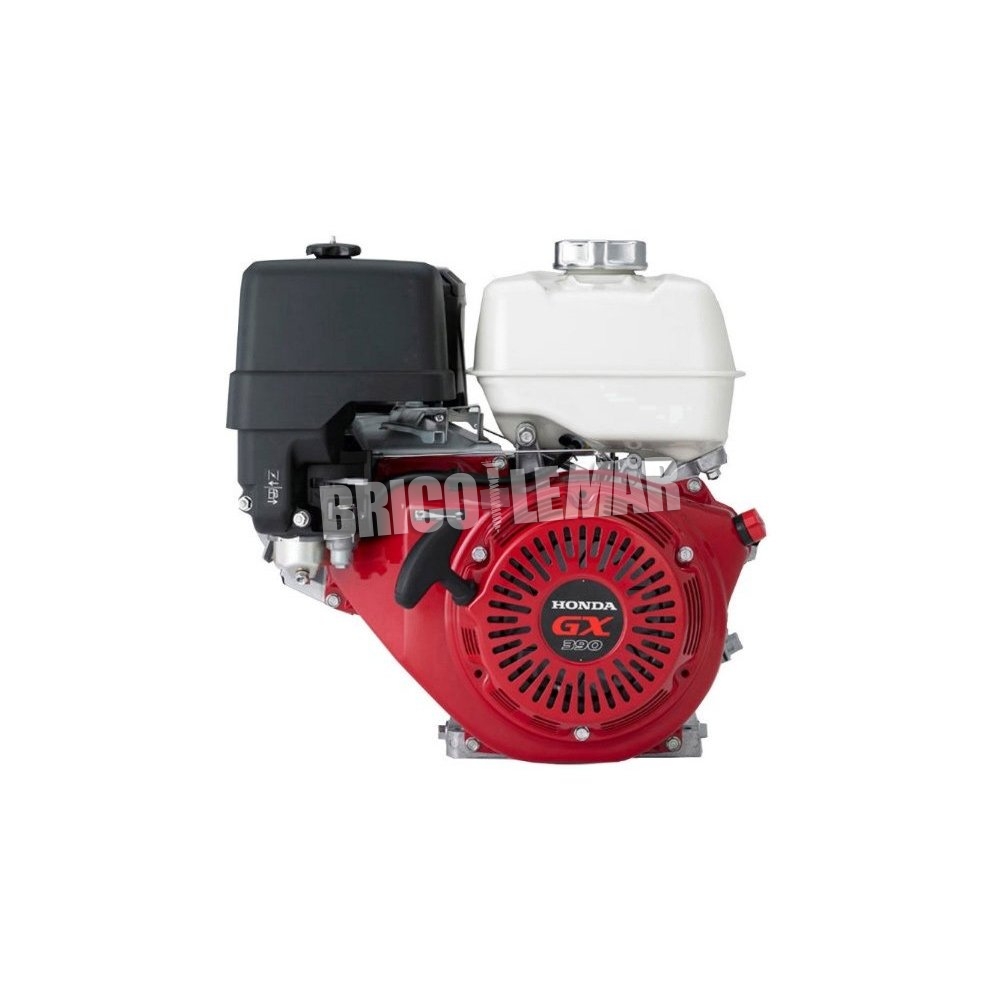

Characteristics of the engine:

• Manufacturer: HONDA
• Model: GX 390
• Nominal power: 13 Cv
• Displacement: 390 cm3
• Cooling System: Air
• Type engine oil SAE 20 W 40 / IPE grade CD, CF
• Aspiration: Natural
• RPM of the engine: 3,600 rpm
• Fuel: Gasoline
• Fuel consumption at 75%: 2.1 L / H
• Oil Capacity: 1.1 L
• Starting system: Electric

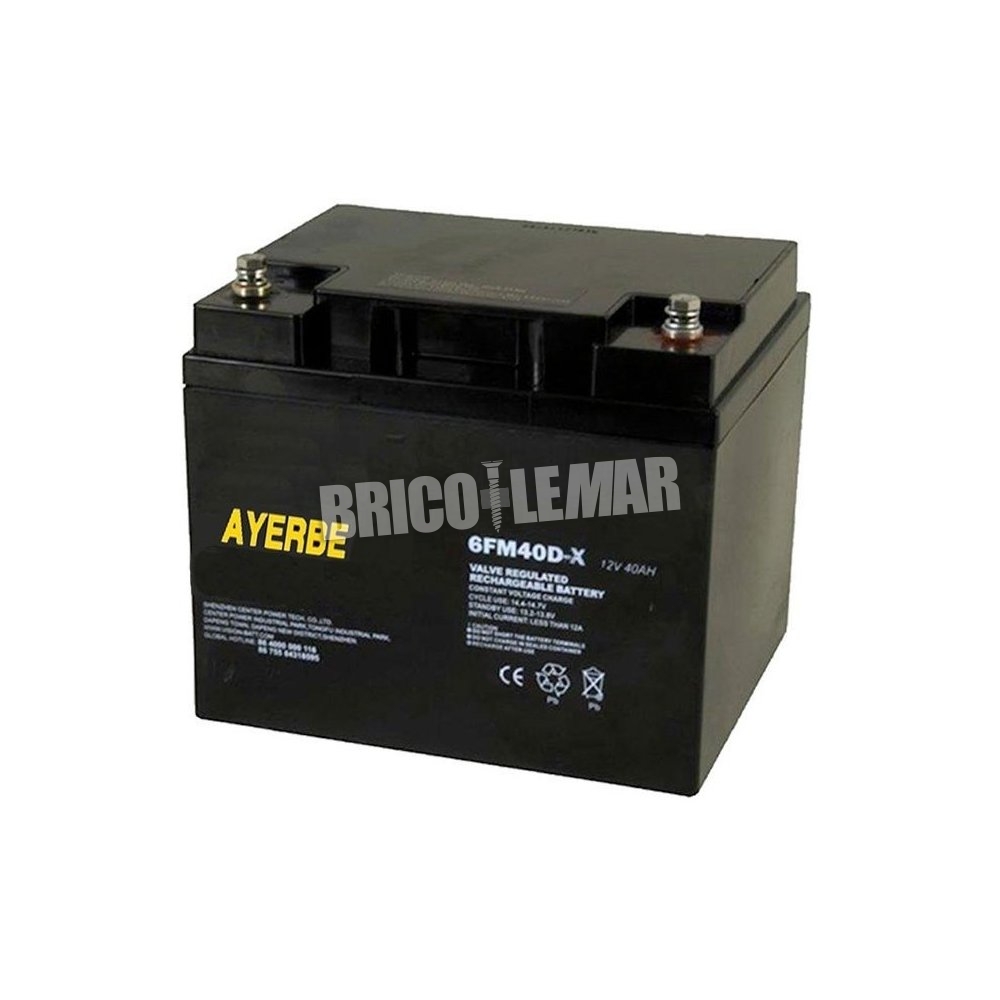

2.- Battery 12V 40AH for generators to 20KVA AYERBE

Lead-acid battery 40Ah 12V for all AYERBE electric starter generators with up to 20 KVA

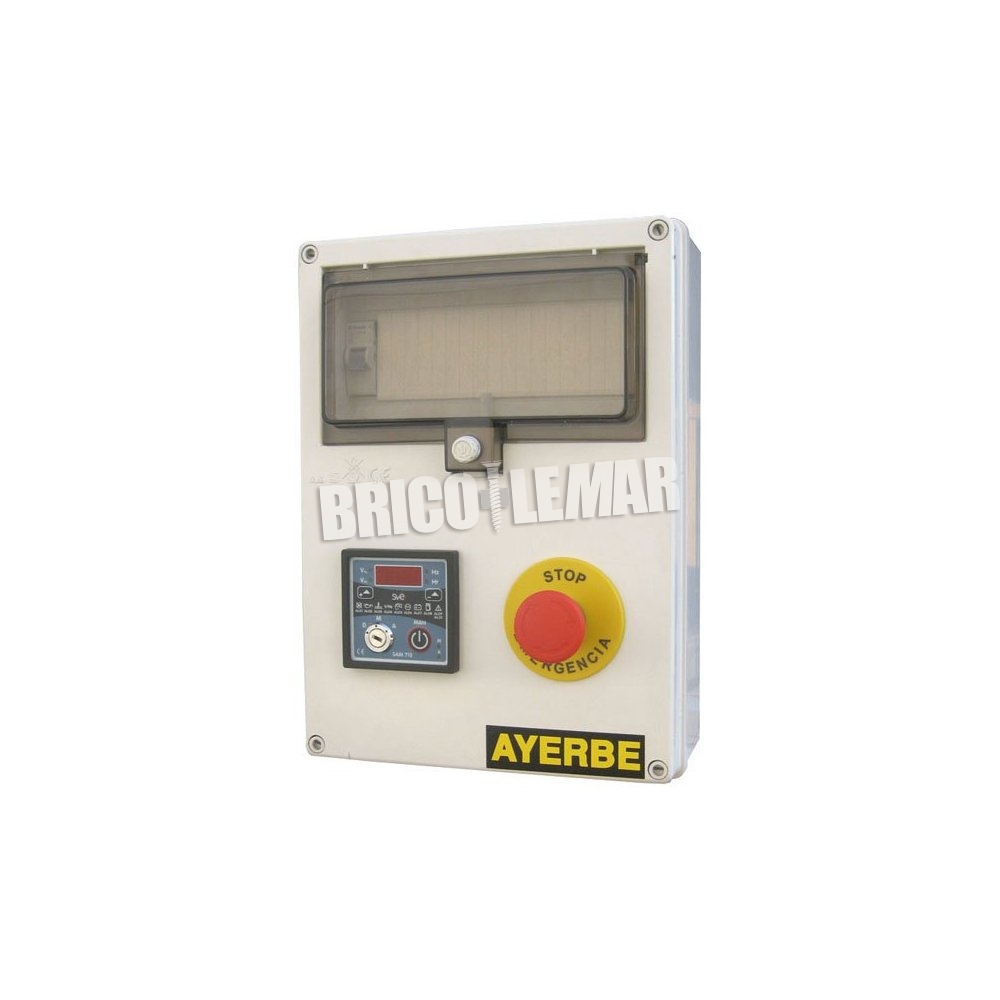

3. - Table boot signal SIG 713 AYERBE

Control box boot external signal

• Electric Start: allows start / stop button manually.
• Automatic startup: allows boot free power contact (for external signal cable, clock, antenna ...)

Control card model SAM713

Control instruments: voltmeter, hour meter, battery voltage, frequency

Security instruments. Off alarms: lack of oil pressure, high temperature or motor overspeed. Warning alarm: maintenance control.

Usable in groups of 5-40 KVA

Dimensions: 325 x 240 x 120 mm.

Option: analog / digital clock.

Option: control antenna
