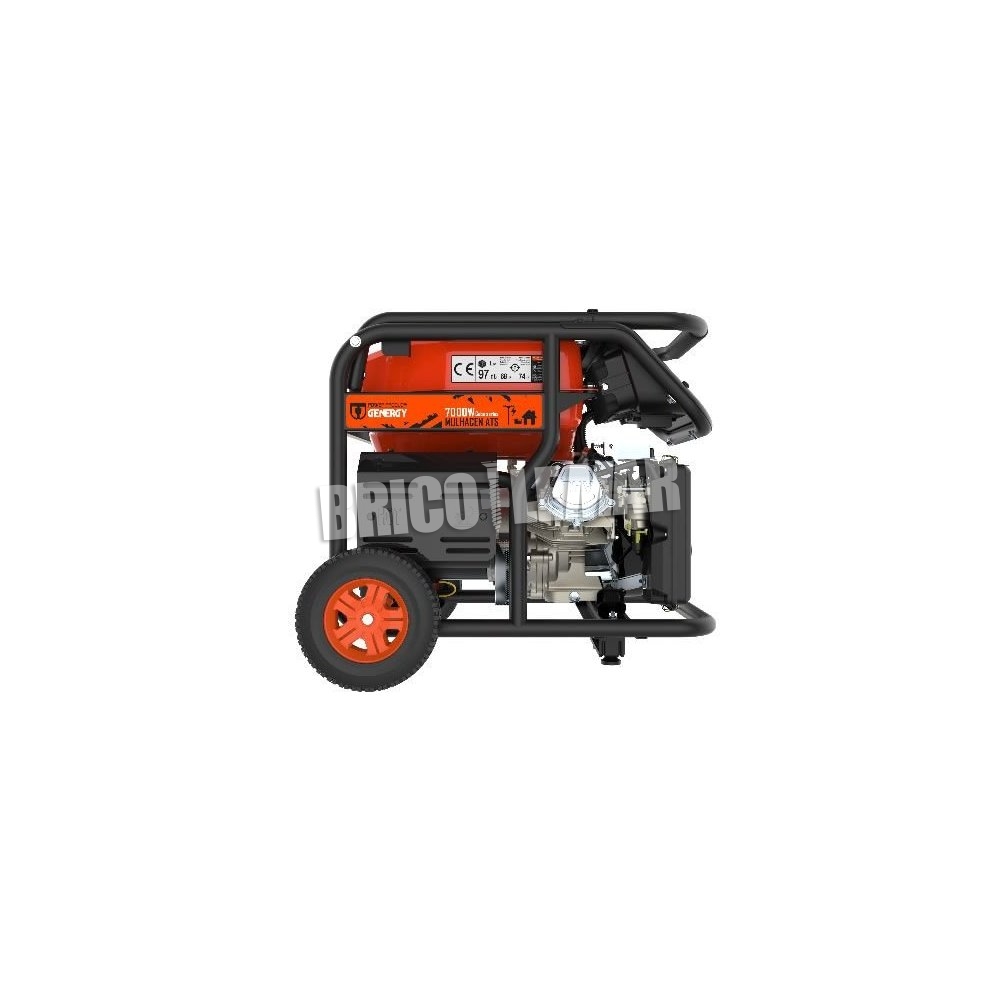

Auto-electrical-hand generator 7000W 230V ATS start Mulhacén
electric generator with the new engine EURO-PRO Genergy SGB V, efficient and highly reliable, ensuring easy and smooth start in any condition.
Manual starter cord and electrical to wrench. Equipped with automatic start system integrated network fault, you do not need external transfer box.
- New electronic throttle ensures fast and accurate automatic startup mode contacts.
- Boot process with fully automated sequence up to 5 start attempts.
- Charger / maintainer integrated battery (230V fed from the inverter). It ensures optimum state of battery charge of the generator at all times.
- Digital panel with display output voltage, frequency and working hours.
- Automatic shutdown for lack of oil, protects the motor from serious damage in case of no or low level of lubricating oil.
- Frame "ZERO GRAVITY", enables movement of the generator with minimal effort.
- Fuel tank large capacity (28L). Greater autonomy with less fill-ups.
- Alternator winding all copper of high quality. Longer life, greater startability of inductive material, the greater tolerance to overcharging or over temperature, infinitely more resistant to environmental etch.
- Electronic voltage regulation, ensures a correct and stable voltage at all times.
- Overload protection by thermal circuit breaker.
- 1x32A outlets (IP44).
- Genergy total guarantee 2 years including labor, transportation and spare parts *.
* The battery is delivered free of charge and is not included in the price of the machine, therefore, not covered by the warranty. If you do not want to receive the gift battery indicate to the summon your order.
* 1 year warranty for the machines invoiced to companies, cooperatives, partnerships or other legal status different from that of individual consumers.
Technical characteristics:
| Stabilization system / Stabilizer system | Electronic "AVR" / Electronic "AVR" |
| Voltage - Frequency / Voltage - Frequency | 230V - 50Hz |
| Maximum AC 230V / Maximum (S2 5min) | 7000W |
| Nominal AC 230V / Rated (COP) | 6500W |
| AC 400V Maximum / Maximum (S2 5min) | - |
| AC 400V Nominal / Rated (COP) | - |
| Type by number of phases / phase class Number | Phase / single-phase |
| Power Factor / Power factor | one |
| Model Engine / Engine model | SGB420PRO |
| Displacement / Displacement | 420cc |
| Engine / Engine type | Gasoline, 4 stroke OHV air cooler / Gasoline 4 stroke OHV air cooling |
| Average sound pressure level 7mts LpA (Ralenti-nominal) Sound pressure level LpA average 7mts (Idle-rated) | 68dB - 74dB |
| Guaranteed sound power level Guaranteed sound power level LwA LwA | 97dB |
| Type start / Starting type | Manual-Electric-automatic to a general failure -Electric-Automatic Recoil as supoort in mains failure |
| Fuel tank capacity / Fuel tank capacity | 28L |
| 25-50-75% consumption to the load / 25-50-75% load Consumption | 2.0 L / H - 2.6L / H - 3L / H |
| Autonomy 25-50-75% load / Long run time 25-50-75% load | 14H - 10.7H - 9.3H |
| Capacity and grade of oil / oil grade and capacity | 1.1L - SAE10W40 |
| Insulation level / Insulation grade | F |
| Insulation class according to quality / Quality insulation class | TO |
| Class according to performance / Performace class | G1 |
| Standard / Standard | ISO 8528-13: 2016 |
| Kit / Wheel kit | Integrated with wheels 8 "/ Integrated With 8" wheels |
| Dimensions / Dimensions | 745x680x669cm |
| Weight / Weight | 92kg |
Video 360:
youtube.com/embed/3GXtapPgo6k "frameborder =" 0 ">
