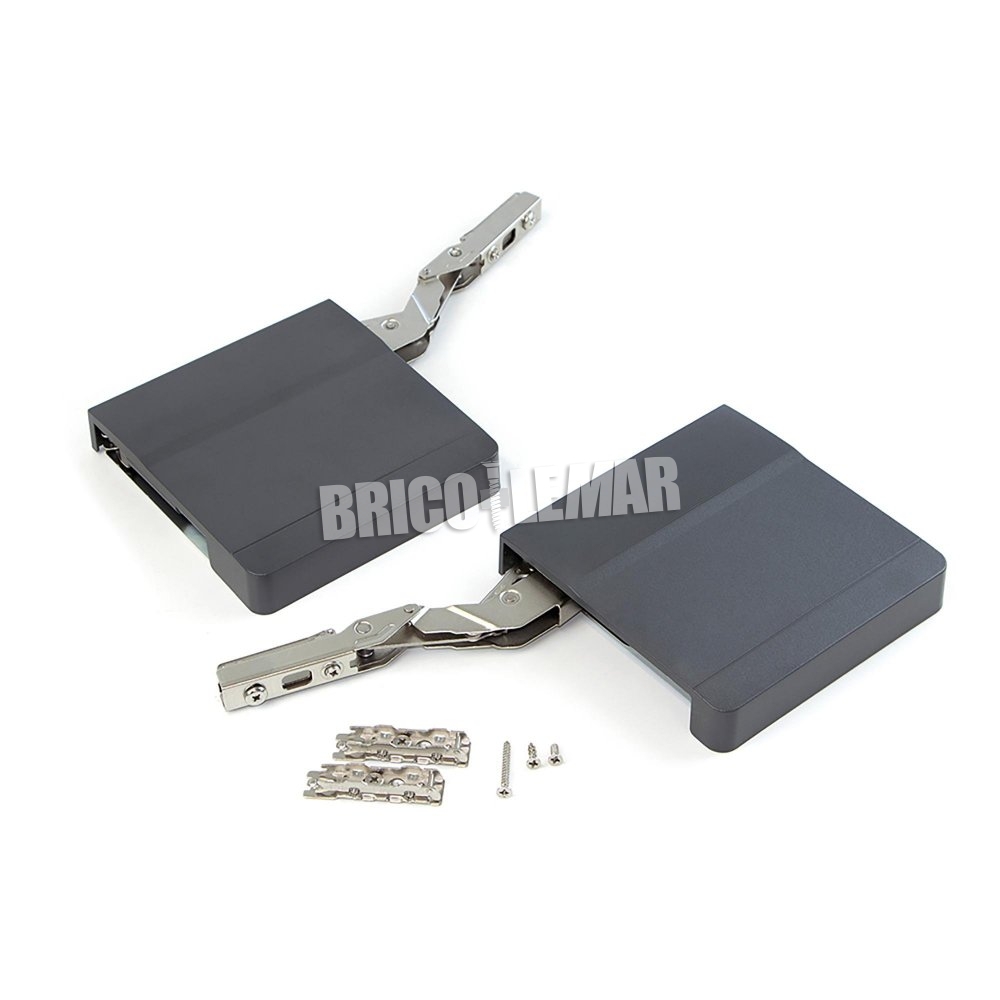

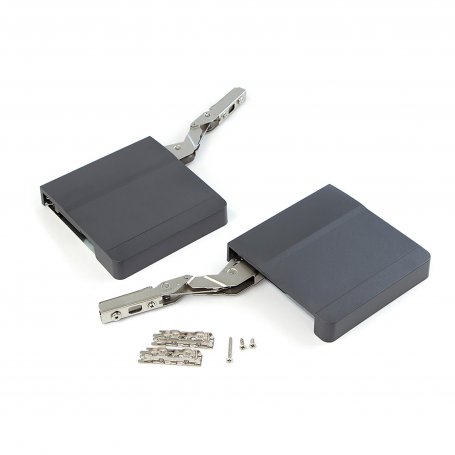

Compass liftable door strength steel and plastic Agile 3200-9000 anthracite gray Emuca

Compasses system for lifting doors in kitchen and home. It noted for its smooth and precise operation without hinges mounting. No you need any tools for removing the door thanks to its easy system of the clipping. Designed for a module width up to 1200mm and height between 250 and 500 mm. Adjust the strength of the mechanism, the position of the door in three dimensions ± 2 mm and has soft closing with adjustable speed.

Available in three ranges greater force to cover range of dimensions and weights of doors to choose from depending on the result of the calculation formulas. The end caps finished in anthracite gray are supplied. It also includes the hooks and screws required for assembly and marking template.

Compass features:

• Compasses system designed to mount raisable doors without hinges.

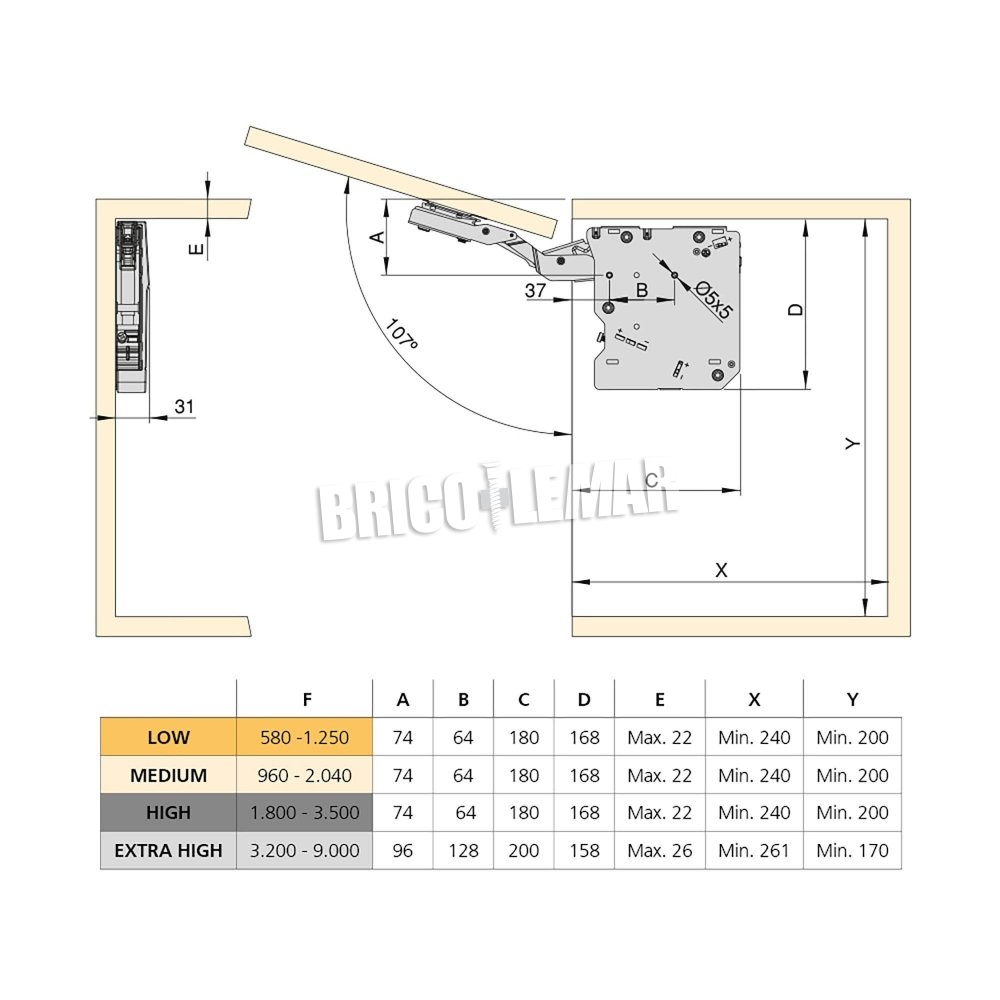

• Opening angle of the door 107th to maximize space and facilitate acces ibili dad.
• Module width to 1.800 mm and height between 400 and 700 mm, with thicknesses from 16 mm board 28 mm.
• It has three settings: adjust the strength of the mechanism, door position tridimiensional ± 2 mm and the speed of the soft close.
• Removing the door toolless easy clipping system.

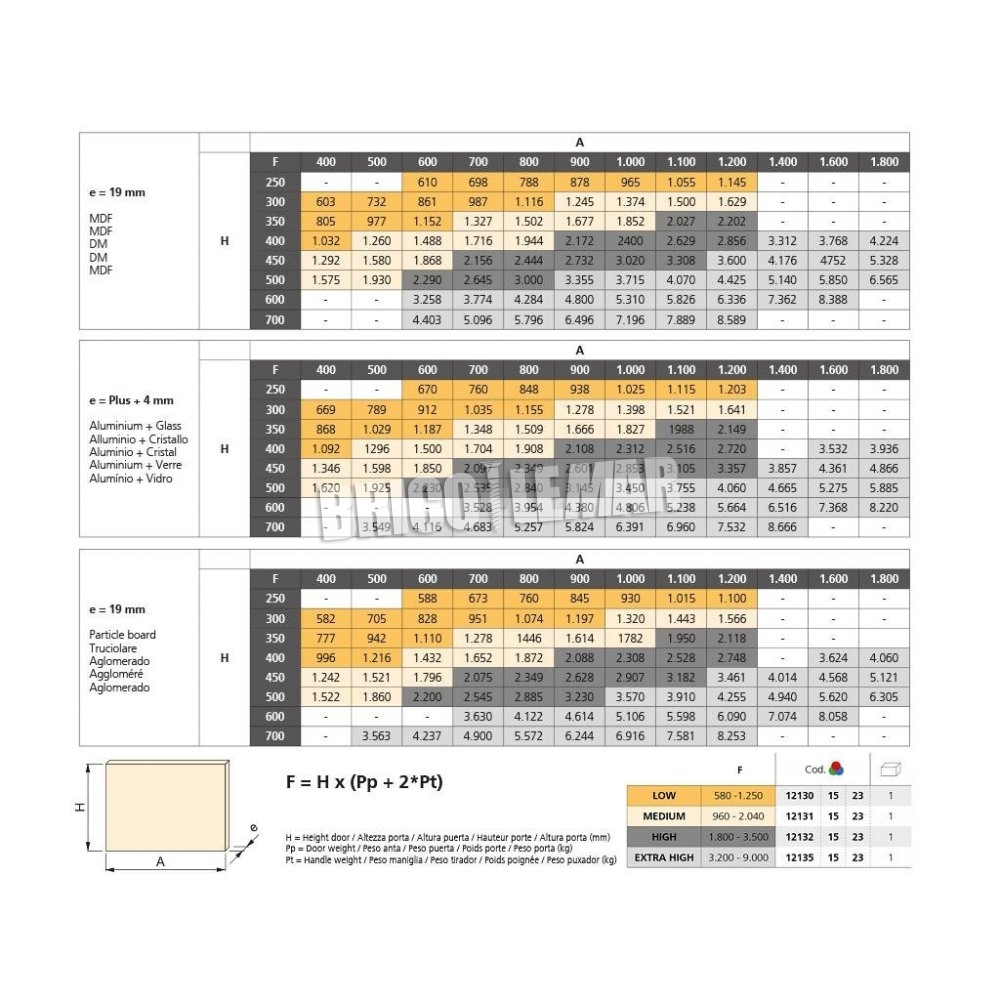

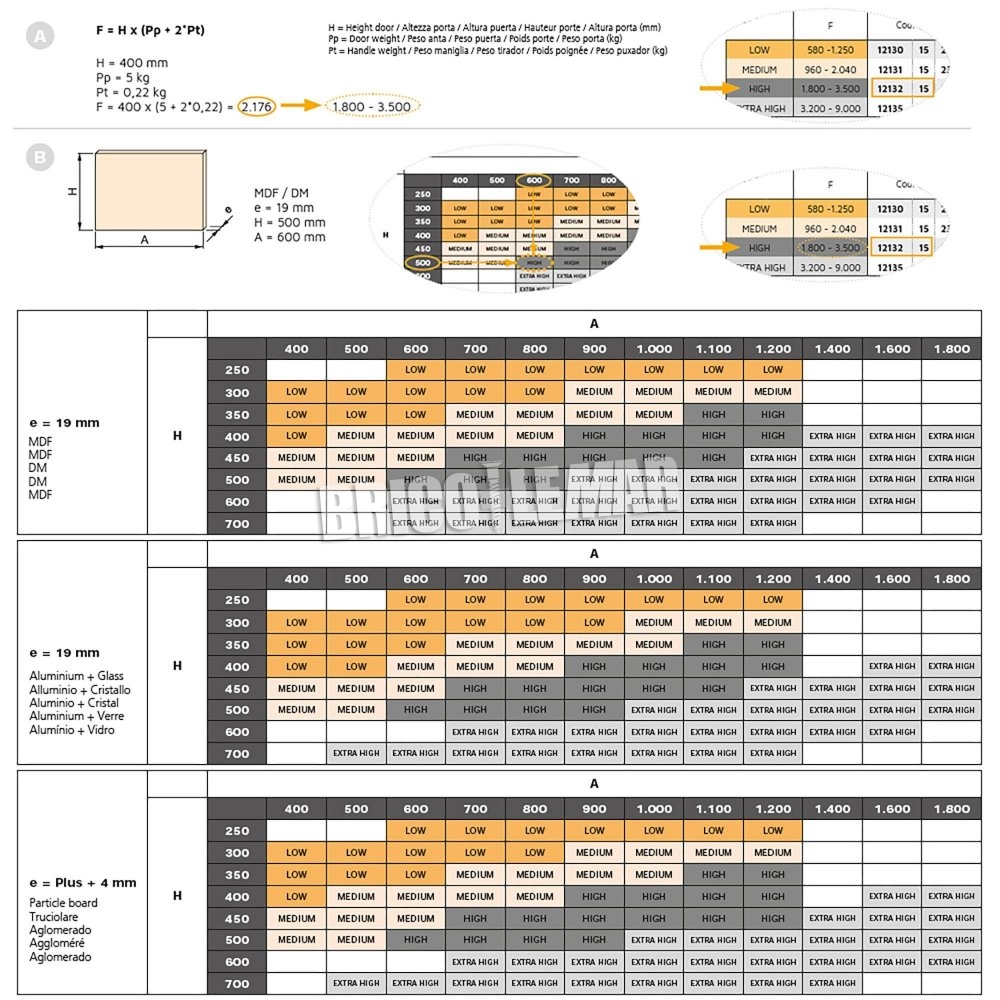

• Compass necessary forces between 3200-9000 (see formulas).
• The set of compasses includes the hooks, screws for fixing and incorporates the marking template.
• It includes end caps in anthracite gray.

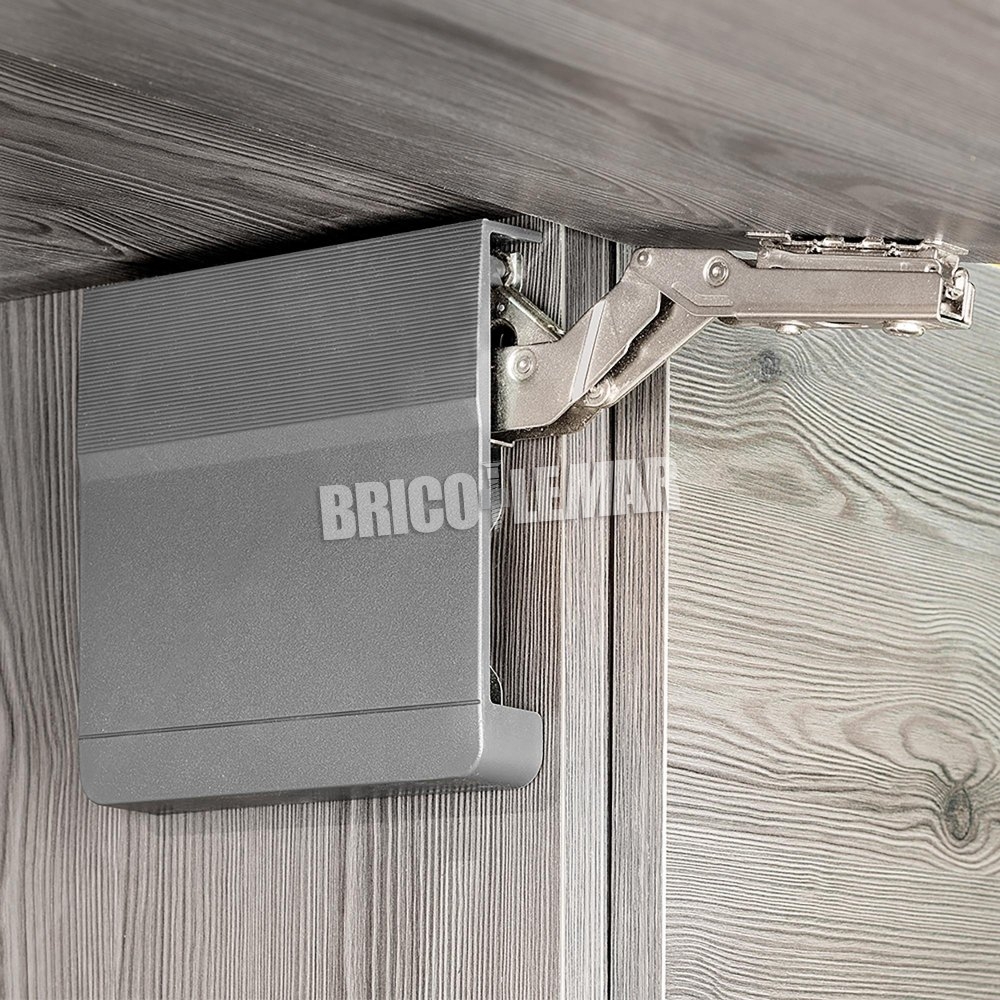

How to install and regulate the system for furniture doors Agile elevables kitchen and household
