Compass doors elevables strength steel and plastic 1600-3600 anthracite gray Emuca

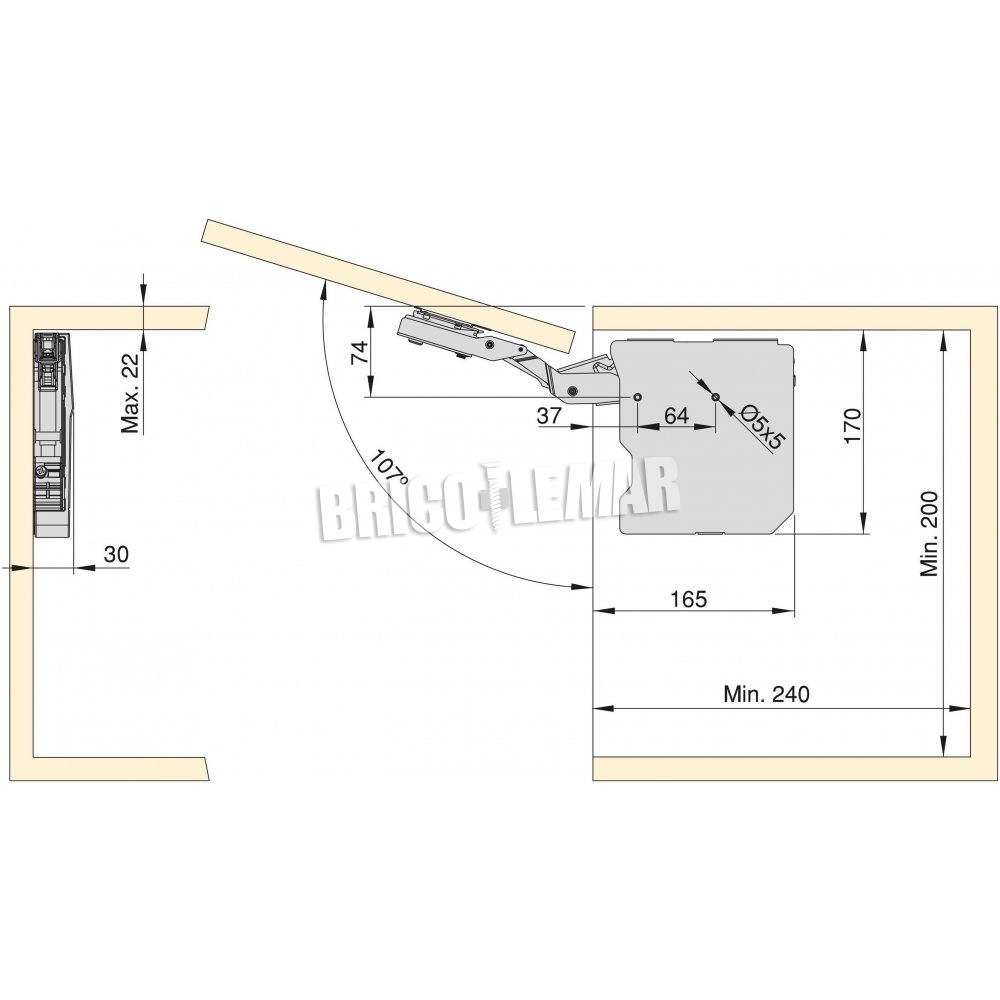

Compasses system designed to mount raisable doors without hinges, module width to 1.200 mm and height between 250 and 600 mm, with thicknesses from 16 mm board 22 mm.

• Opening angle of the door 107th to maximize space and facilitate acces ibili dad.
• It has two settings: adjust the strength of the mechanism and the position of the door tridimiensional ± 2 mm.
• Removing the door toolless easy clipping system.
• Compass for power between 1,600- 3,600 required (see calculation formulas).

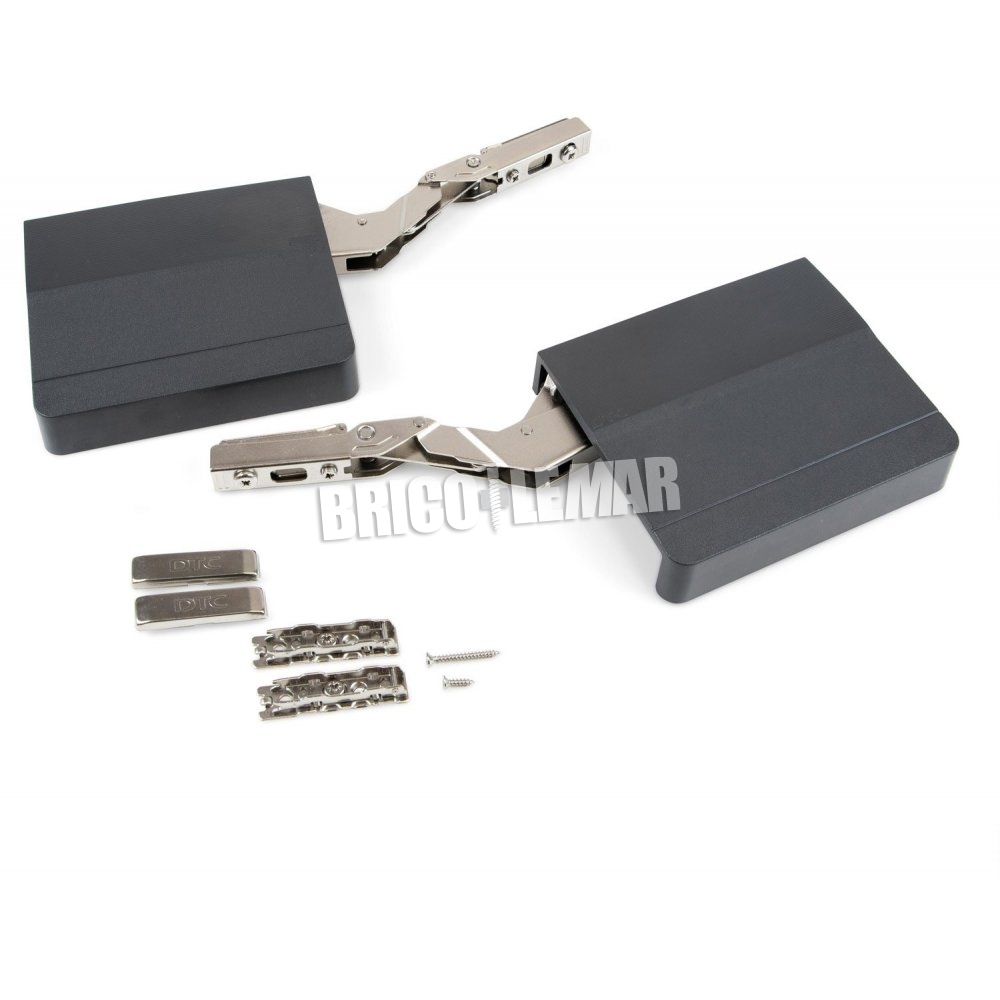

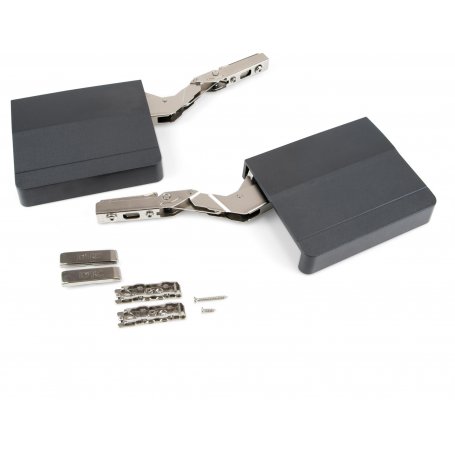

• The set of compasses includes the hooks, screws for fixing and incorporates the marking template.
• It includes end caps in anthracite gray.

Calculation of the strength of the beat

F = H x (Weight door handle Weight + 2 *)

F = Force.
H = height of the door in mm.
Door weight = weight in kg door.
Shooter weight = weight in kg shooter.
