Guidelines extensible kitchen table Party or anodized aluminum stainless home Emuca

The Party table is designed with a foldable extraction system with double telescopic leg, this system is oriented kitchen but can be used in other housing environments. The system can be installed in Party modules width of 900 mm and a depth of 560 mm, obtaining a length of 1380 mm table and a load capacity of 100 kg.

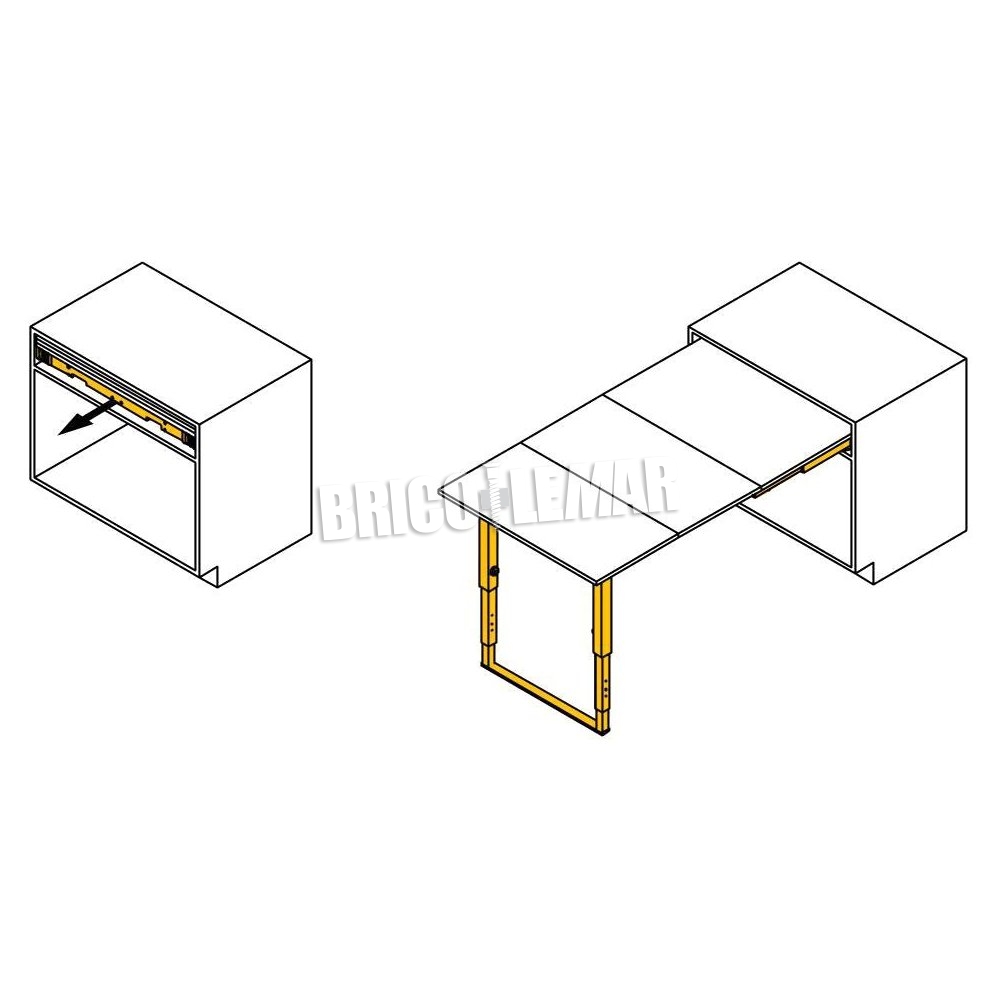

The table is obtained through three boards that are deployed with the aid of hinges, the panels remain housed in the same space as the mechanism when the table is not being used. The front of the cabinet after saving the table must have hinges for opening. The leg is foldable and adjustable in height, besides the leg and the guides have a locking system during use of the table.

boards that make up the support surface are not included.

Features of the guidelines:

• System for extracting a hidden folding table length 1380 mm double leg telescopic. Auque oriented kitchen can be used in other housing environments.

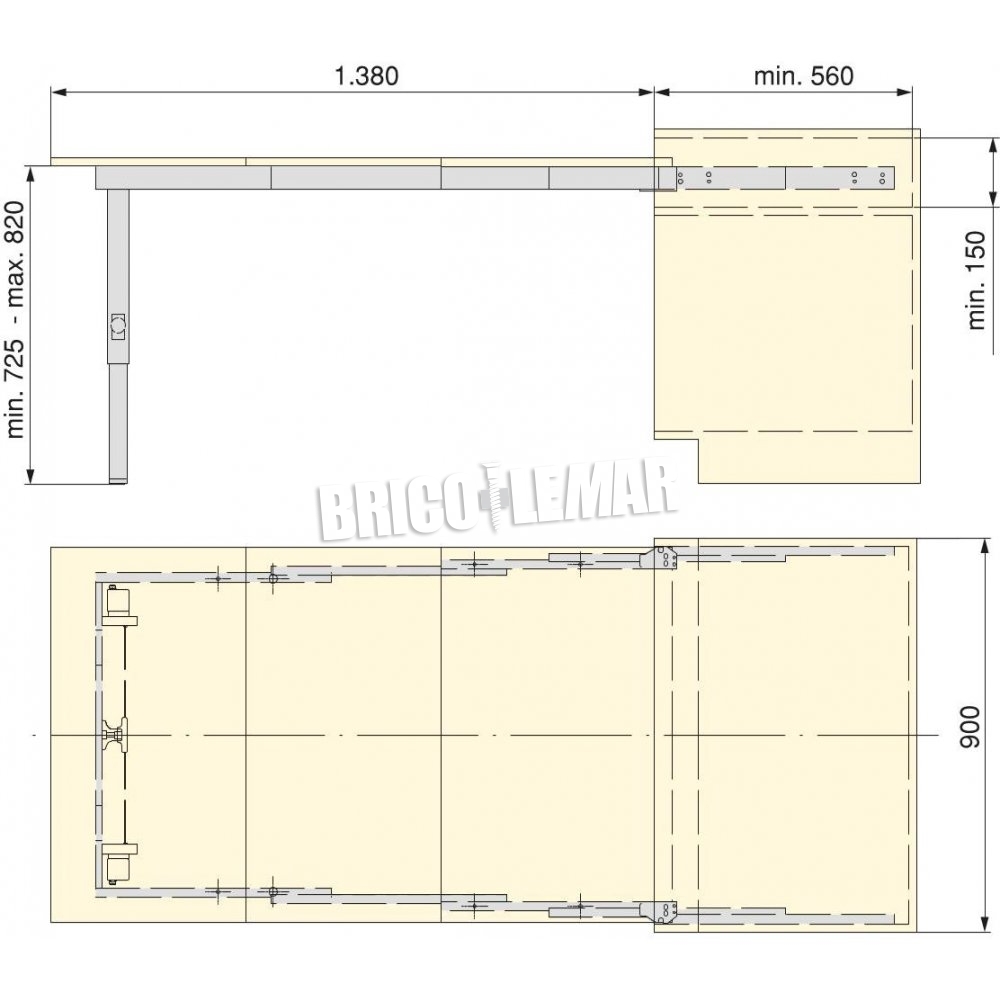

• Valid for modules 900 mm width and minimum depth of 560 mm and 100 kg capacity.
• The guides and the leg have a locking system when open to prevent inadvertent closure.
• screws for installation and assembly instruction sheet included.

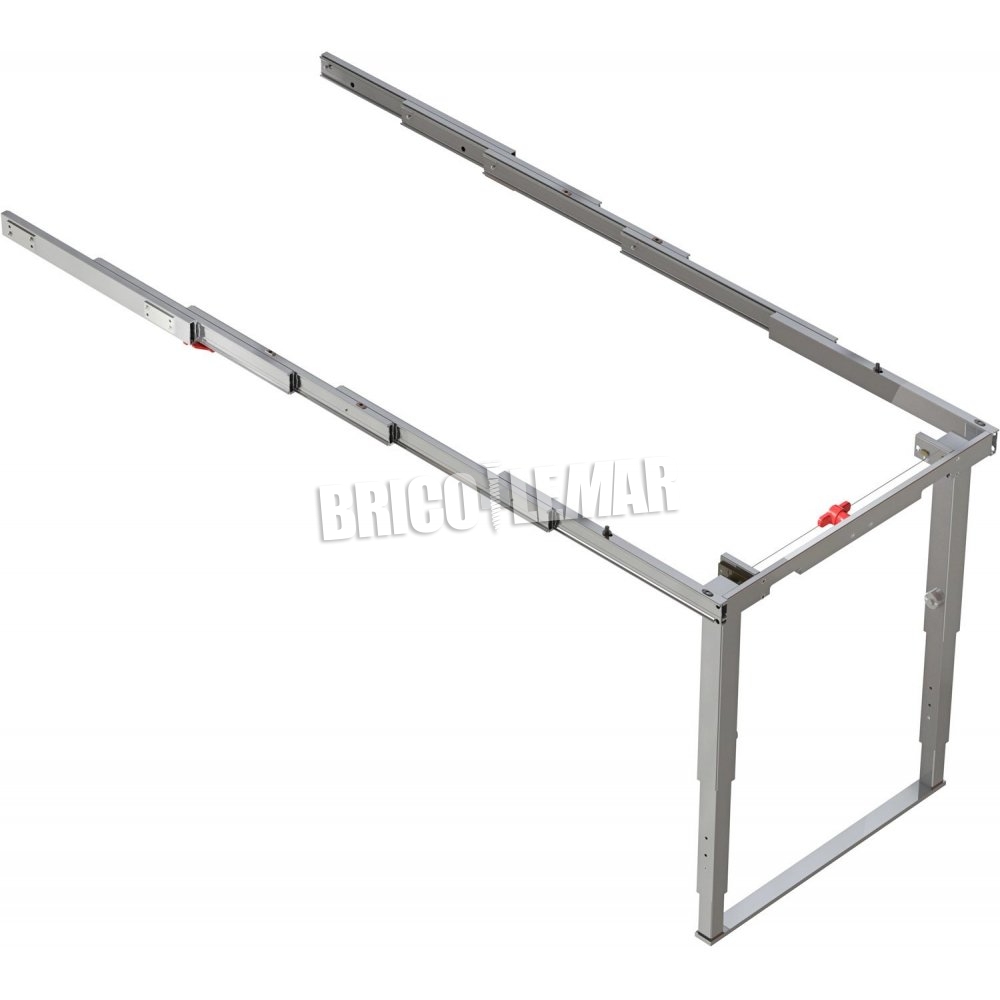

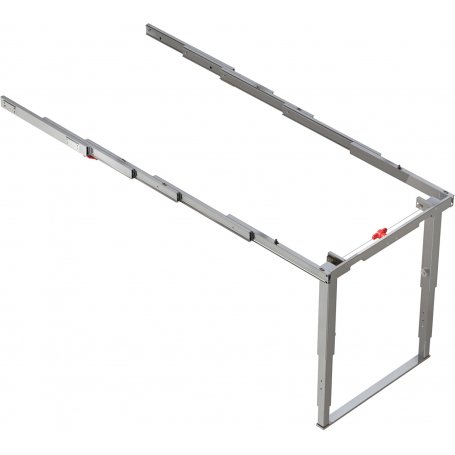

• The profiles forming the guides are made of extruded aluminum and stainless anodized finish.

How to mount the guides?
