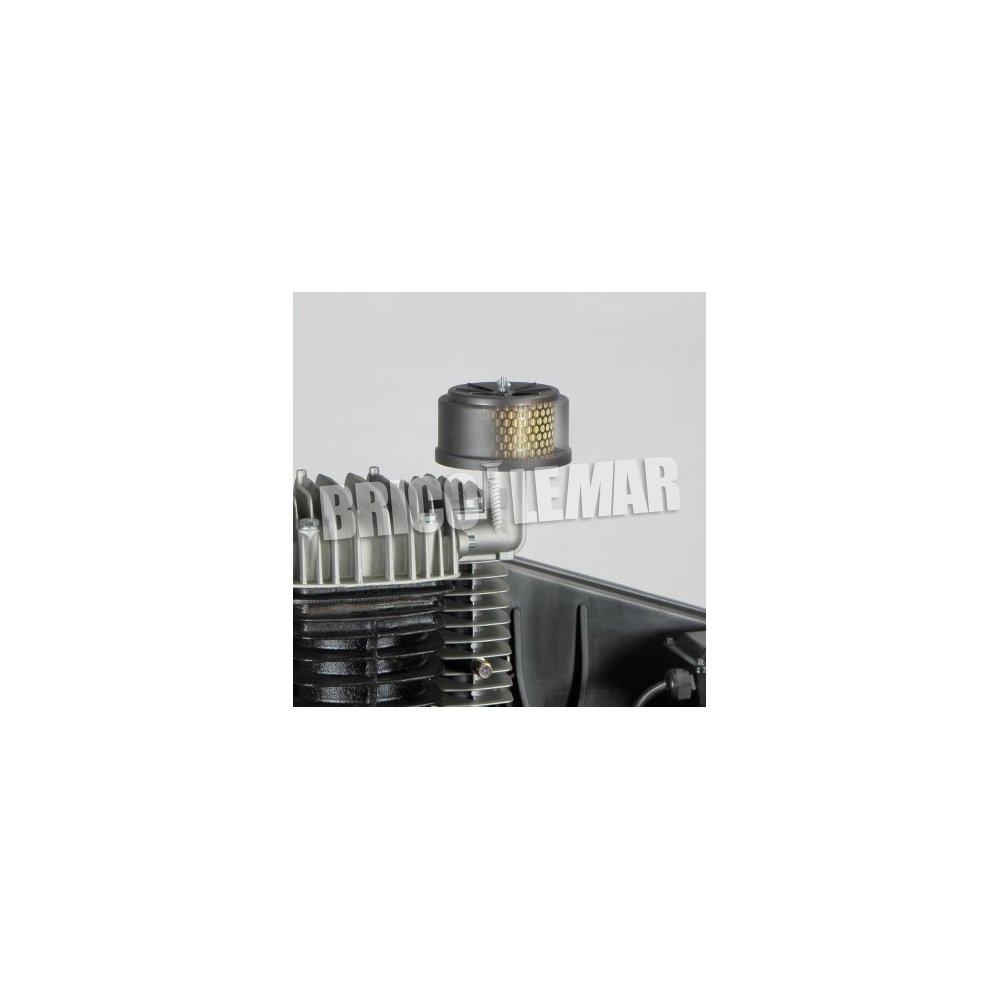

Piston compressor phase NB7 / 7.5 / 500 FT Nuair 15bar 500L 7,5Hp

Piston compressor double stage high reliability, with the casting cylinder. Large surface area for better cooling ventilation. It includes antivibration feet. To work up to 15 bar pressure.

Technical characteristics:

• Power: 7.5 hp / 5.5 kW
• Boiler: 500 liters
• Maximum operating pressure: 15 bar
• Intake air: 705 liters / min
• Pressure: 188 psi
• Power: 400V / TRIF / 60HZ
• Connection Thread: 3/4
• Group: NB7
• Cylinders: 2
• Stages: 2
• Lubricated: Yes
• Dimensions: 2080x700x1450
• Weight: 285kg
