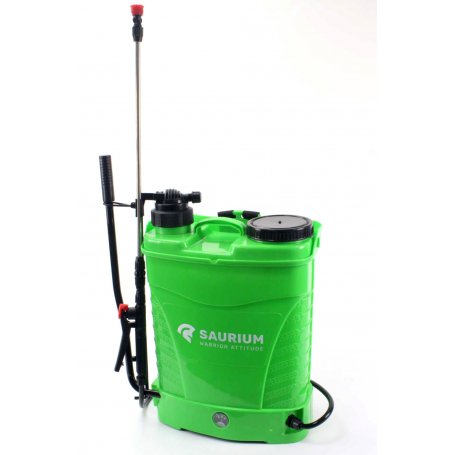

16L pressure sprayer manual and battery 12v Power Mac

This backpack pressure sprayer 16 liters with extendable lance inox is a team that unites energy saving and high efficiency. It can be used to control pests in collections and gardens, cleaning of public spaces and epidemic control animals. With a 12V / 8AH, this sprayer has an efficiency 3 to 4 times higher than a hand sprayer. You can work continuously for 9 hours and 400-480Kg spraying liquid after a full load consuming only 0.3kW / h of electricity. Atomization results are excellent.

Structure:

Ester team is composed of:

• Container
• Base
• minipump
• Spray system (including rubber hose, switch and heads)
• Band
• Wheel

Characteristics:

• The container is ergonomically designed to be comfortable for the back.
• It has a compact mini pump diaphragm, mild, high pressure and long-lasting protection allows automatic pressure limit.
• It has a filter with triple protection to prevent clogging particle peak. The filter is easily removable to facilitate cleaning.
• It has an alarm for low voltage circuit. In case of prolonged use, the alarm sounds when the battery voltage drops to 10.5V, to protect the battery.
• It has a special charger 3 loading sections (constant current / constant / maintenance voltage) and short circuit protection / overload / reverse connection. The light indicates the charging status: red (charging - Green (loaded) - Stand-by.

Technical data:

• Capacity: 16L
• Working pressure: 0.4 ~ 0,45Mpa
• Weight: 6.2kg
• Launches length: 60 ~ 80mm
• Dimensions: 40 × 20 × 53 cm
• Pump: Diaphragm minipump
• Battery: 12V 8AH
