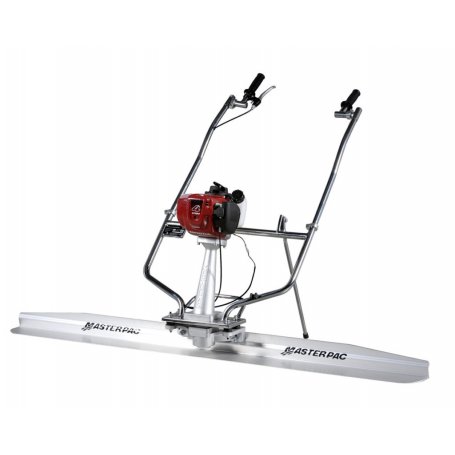

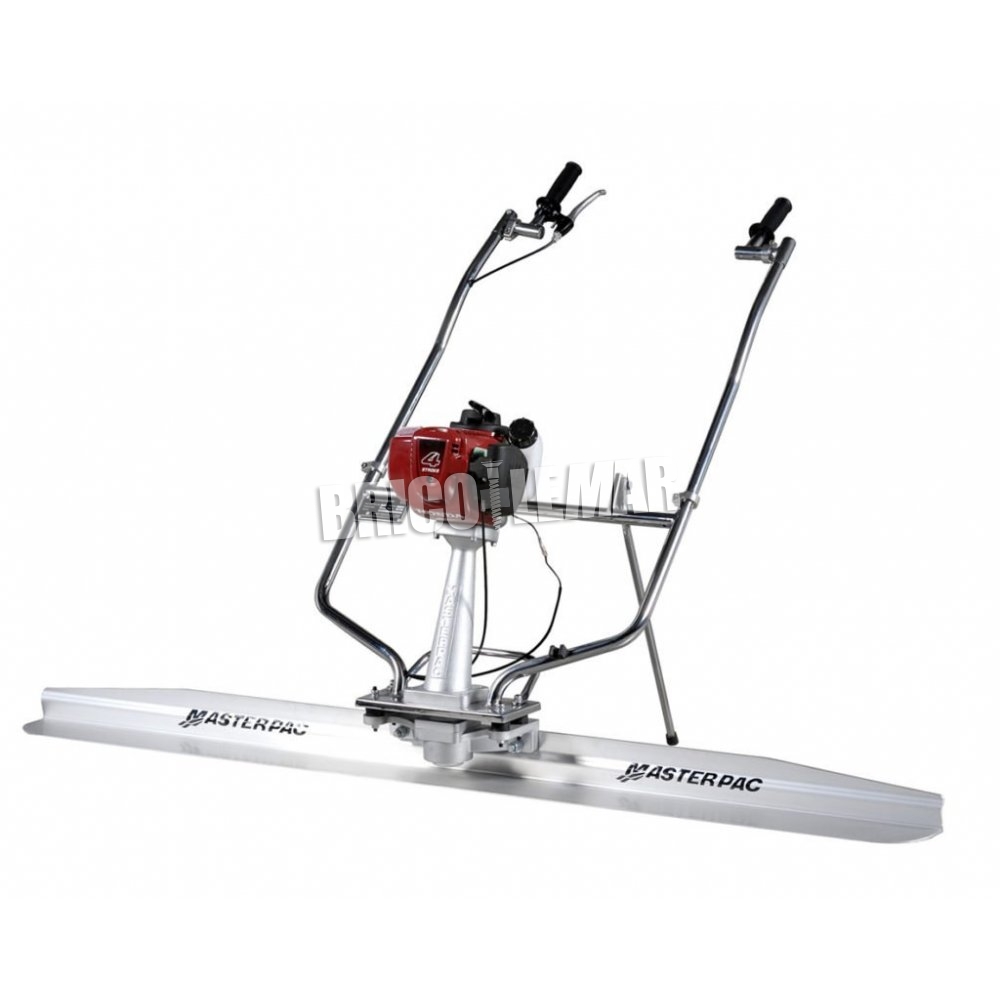

Vibrating screed double handle AY-35 engine Honda 2.4m

Vibrant rule double handle powered by a Honda petrol engine, provides uniform throughout the length of the ruler and improves concrete compaction vibration level allows up to 4 times more concrete than the traditional method, and do it more accurately. For a working width of 2.4 m, weight of 18,50 kg makes one of the lightest on the market portable units.

key features

• Hardened aluminum foil specially designed ensuring a smoother finish than conventional rules.
• Heavy media to reduce the level of vibration in the handle rubber.

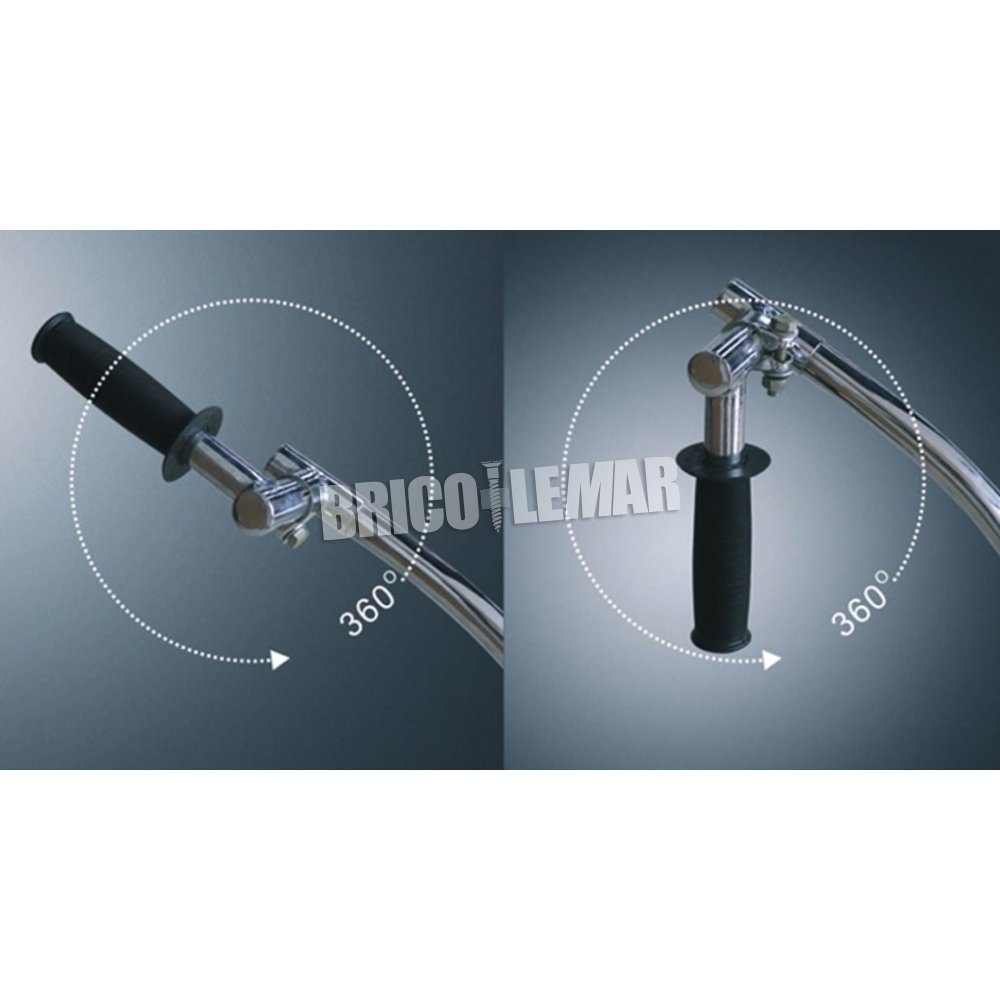

• handle adjustable in height, position vertically and horizontally (optional).
• The rounded ends of the rule facilitate overcoming obstacles.
• The tilt stand keeps the engine out of concrete or floor when not in use.
• The casting body is connected in one piece to the engine easily.
• Emergency stop switch available.

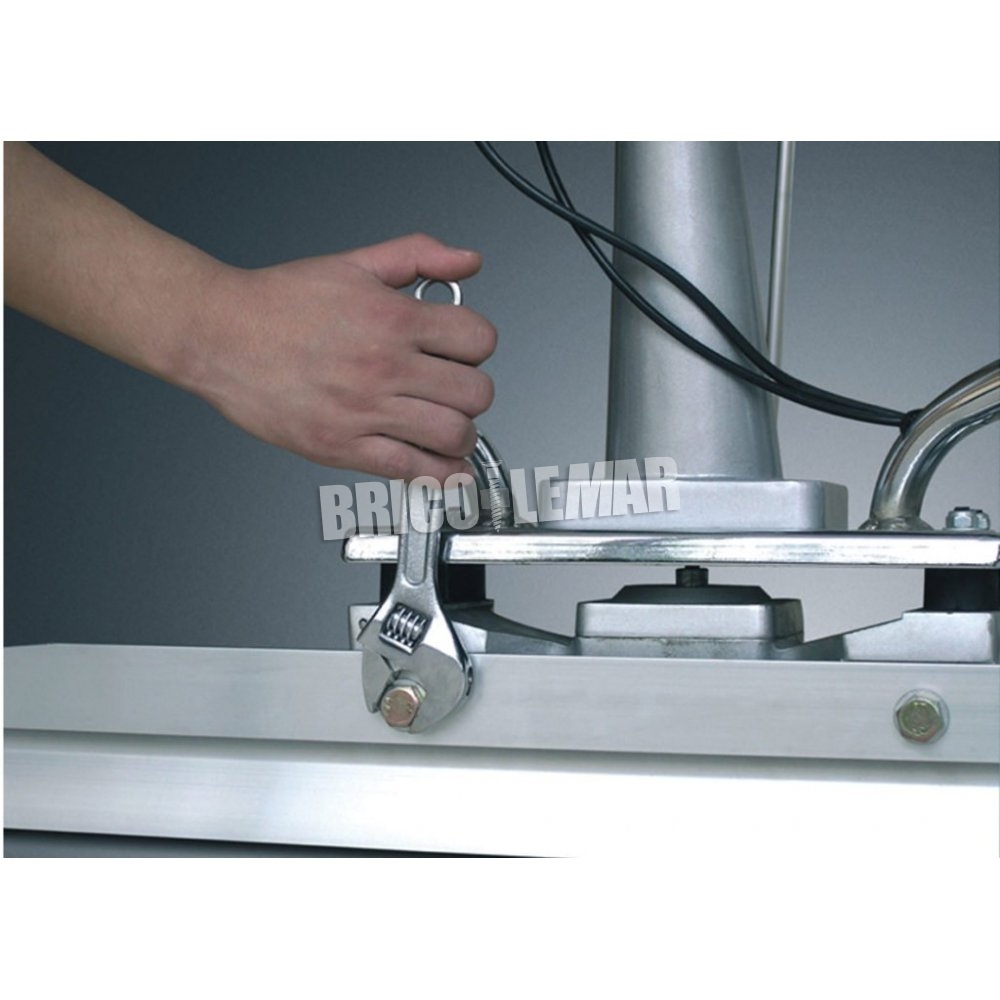

• easily changeable leaves, less than 2 minutes.

Technical data:

• Engine: Honda GX35
• Scroll: Manual
• Working width: 2.4 m.
• Maximum frequency: 7000 vpm
• Weight: 18.5 kg.
• Profile type: L
• handlebar height: 990mm
• Dimensions: 450x660x1000mm
