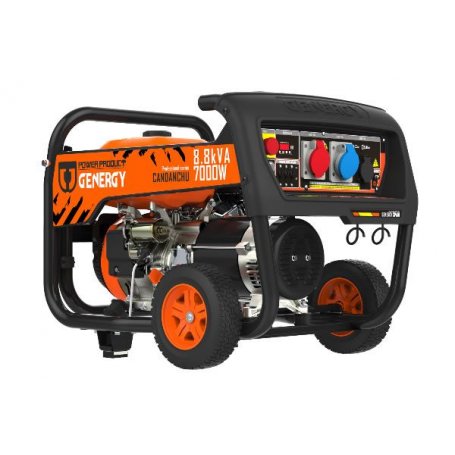

Candanchú three-phase generator 7000W / 6500W 400V / 230V electric start

electric generator with the new engine EURO-PRO Genergy SGB V, efficient and highly reliable. Ensuring an easy, smooth start in any condition. Dual voltage alternator. Offers all the power in both single-phase and three-phase. Manual starter cord and battery power.

  • Smart Display. Notifies the user of maintenance work required at all times. Also, it is shown in screen voltage, frequency and hours.
  • Automatic shutdown for lack of oil, protects the motor from serious damage in case of no or low level of lubricating oil.
  • Rack enclosure with integrated wheels (not sobreexceden of the frame, facilitating linear product storage or rental stores).
  • Alternator winding all copper of high quality. Longer life, greater startability of inductive material, the greater tolerance to overcharging or over temperature, infinitely more resistant to environmental etch.
  • Electronic voltage regulation ensures a correct and stable voltage at all times.
  • Overload protection by thermal circuit breaker.
  • 1x32A single phase outlet (IP44)
  • 1x16A three phase outlet (IP44)
  • Genergy total guarantee 2 years including labor, transportation and spare parts *.

* The battery is delivered free of charge and is not included in the price of the machine, therefore not covered by the warranty. If you do not wish to receive battery gift, please indicate the summon your order
* 1 year warranty for the machines invoiced to companies, cooperatives, partnerships or other legal status different from that of individual consumers.

Technical characteristics:

Stabilization system / Stabilizer system

Electronic "SVR" / Electronic "SVR"

Voltage - Frequency / Voltage - Frequency

230V - 50Hz

Maximum AC 230V / Maximum (S2 5min)

6500W

Nominal AC 230V / Rated (COP)

6000W

AC 400V Maximum / Maximum (S2 5min)

7000W (8.8Kva)

AC 400V Nominal / Rated (COP)

6500W (8.1Kva)

Type by number of phases / phase class Number

Phase / single-phase

Power Factor / Power factor

0.8

Model Engine / Engine model

SGB420PRO

Displacement / Displacement

420cc

Engine / Engine type

Gasoline, 4 times OHV air cooler / petrol 4 stroke OHV air cooling

Sound pressure level LpA average 7mts (Ralenti-nominal)

7mts average sound pressure level LpA (Idle-rated)

68dB - 74dB

Sound power level LwA guaranteed

Guaranteed sound power level LwA

97dB

Type start / Starting type

Electric and Manual / Recoil and electric

Fuel tank capacity / Fuel tank capacity

6L

25-50-75% consumption to the load / 25-50-75% load Consumption

2. 0 L / H - 2.6L / H - 3.0L / H

Autonomy 25-50-75% load / Long run time 25-50-75% load

3.0H - 2.5H - 2.0H

Capacity and grade of oil / oil grade and capacity

1.1L - SAE10W40

Insulation level / Insulation grade

F

Insulation class according to quality / Quality insulation class

TO

Class according to performance / Performace class

G1

Standard / Standard

ISO 8528-13: 2016

Kit / Wheel kit

Integrated with 10 "wheels / Integrated With 10" wheels

Dimensions / Dimensions

787x623x640mm

Weight / Weight

95kg

Video 360:
