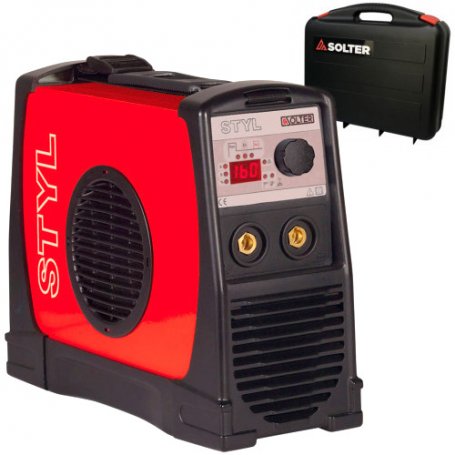

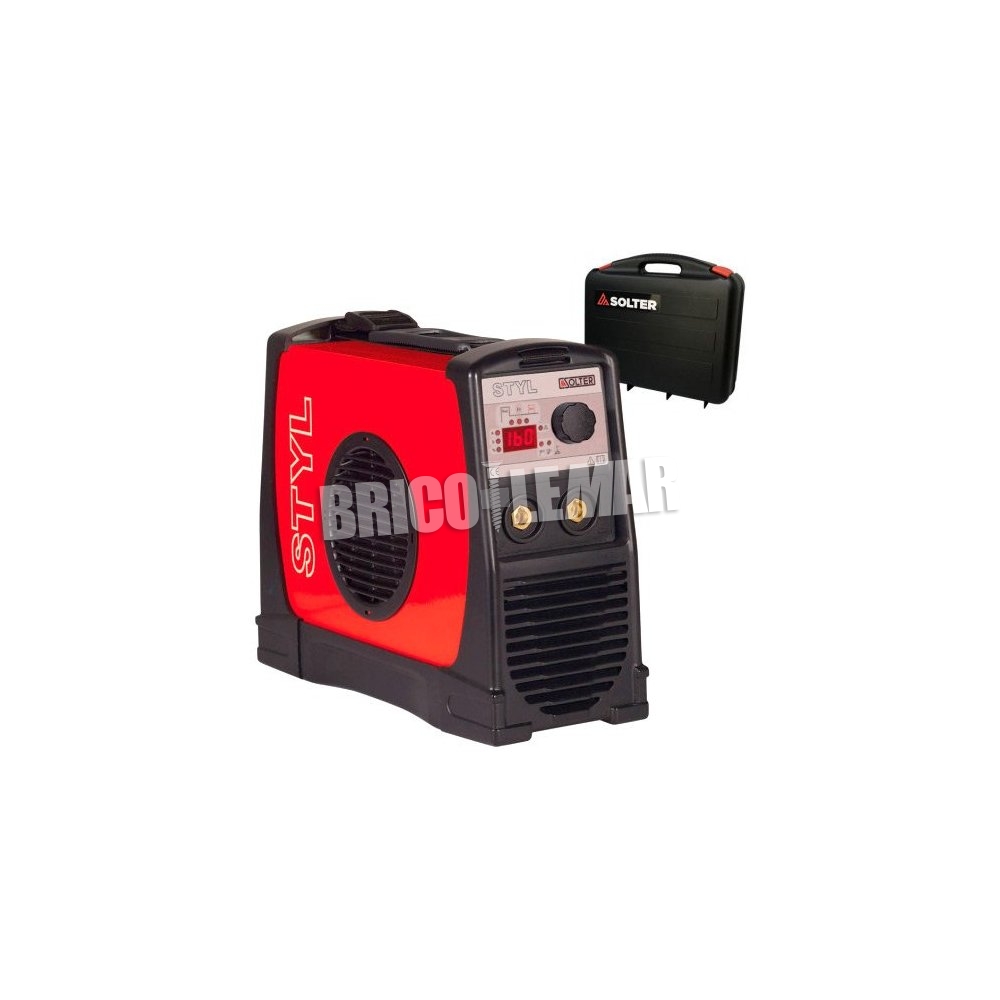

Welder inverter Solter 185 + briefcase STYL

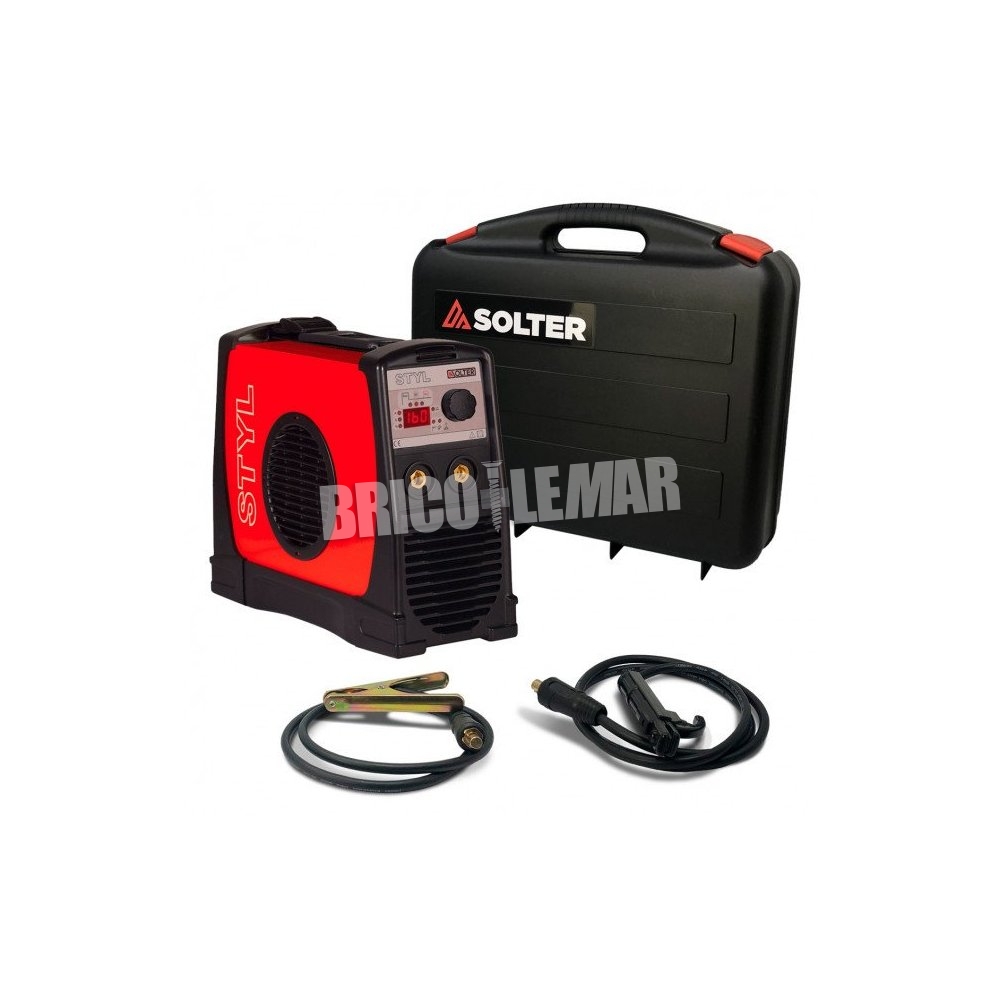

Soldering equipment inverter 160Amp to 45%, equipped with case and accessories welding.

The line STYL applies all INVERTER technology in compact models with power ratings up to 160 amperes. Has excellent capacities in welding electrodes coated stresses pos ibili ty also welded by the TIG.

Main features:

• 160 Amp maximum power with minimum weight 4.5 kg.
• Ease of use thanks to INVERTER technology providing continuous DC current.
• Minimum consumption for its high energy efficiency.
• Equipped with Anti-Stick, Arc-Force and Hot-Start TIG Lift-Arc.
• Connectable to generators with a wide range of operating voltages.

Technical characteristics:

• Intensity MAX .: 160A
• 40 Yield: 45%
• 60% intensity (100%) at 40: 140A (100A)
• Setting range: 10-160A (21 -26,4V)
• MMA usable electrodes: 1.6 to 4.00 mm
• Connection: 230V - 1Ph
• Range of use: 180V - 280V
• Load voltage: 80V
• Power consumption max .: 6,6KvA
• Imax: 29A
• Ieff: 19,5A
• Fuse: 16A
• Ventilation: DOUBLE
• Weight: 4.5kg
• Panel regulation: DIGITAL SOLTER
• Standards: EN-60974-1, EN-60974-10
• Protection index: IP23C
• TIG usable electrodes: 1.0 to 2.4 mm
• Dimensions: 305x115x225
