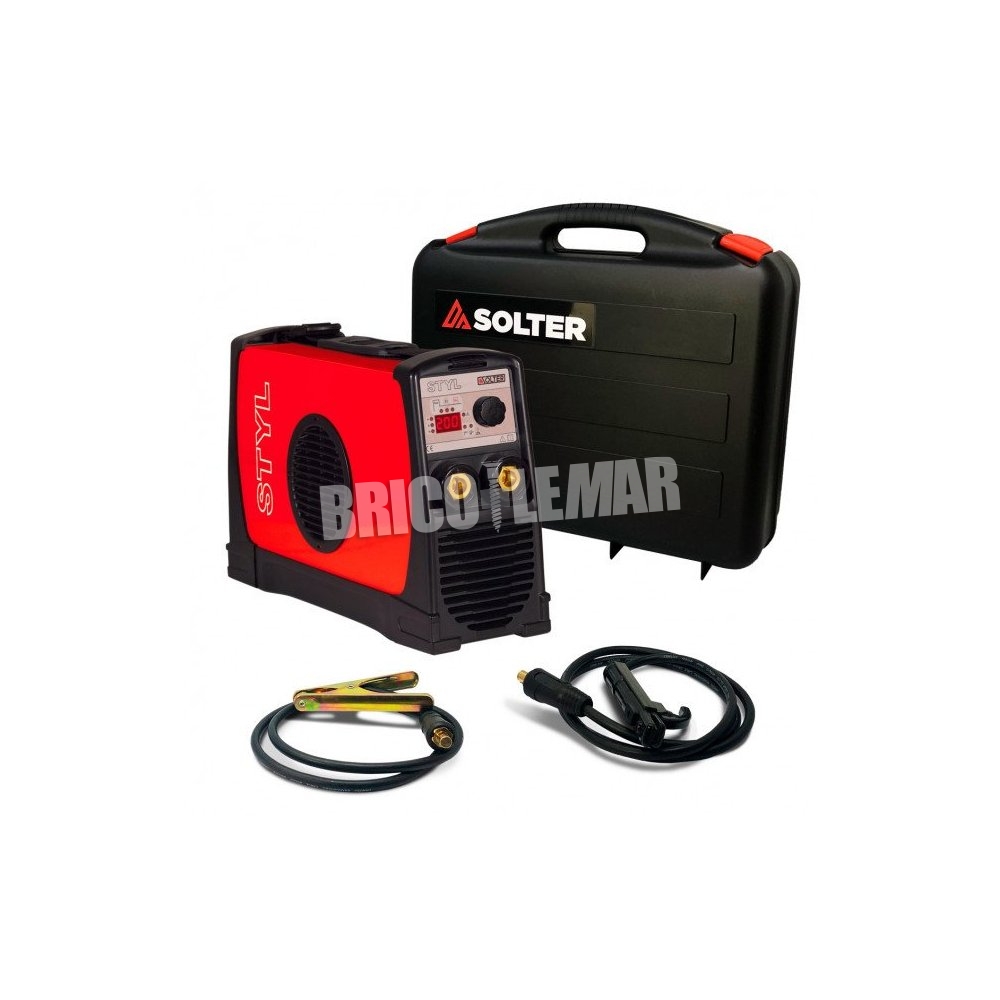

Welder inverter Solter STYL 205 PRO + Briefcase

Soldering equipment inverter 200Amp to 60%, equipped with case and accessories welding.

STYL PRO models apply the entire INVERTER technology in compact models with power ratings up to 200 amperes. Has excellent capacities in welding electrodes coated stresses pos ibili ty TIG welding using the Lift-Arc process.

Area of application:

• Industrial maintenance and repair.
• TIG welding steels and carbon steel.
• Welding different types of coated electrodes.
• 200 Amp maximum power with minimum weight 7.5 kg.
• Ease of use thanks to INVERTER technology providing continuous DC current.
• Minimum consumption for its high energy efficiency.
• Equipped with Anti-Stick, Arc-Force and Hot-Start TIG Lift-Arc.
• It can be connected to generators with a wide range of operating voltages.
• Intensity MAX .: 200A
• 40 Yield: 50%
• 60% intensity (100%) at 40: 170A (110A)
• Setting range: 10-200A (20.4 -28V)
• MMA usable electrodes: 1.6 to 4.00 mm
• Connection: 230V - 1Ph
• Range of use: 180V - 280V
• Load voltage: 80V
• Power consumption max. : 9,5Kva
• Imax: 38A
• Ieff: 29A
• Fuse: 16A
• Ventilation: DOUBLE
• Weight: 7.5kg
• Panel regulation: DIGITAL SOLTER
• Standards: EN-60974-1, EN-60974-10
• Protection Index: IP23C
• TIG usable electrodes: 1.0 to 3.2 mm
• Dimensions: 305x115x225mm
