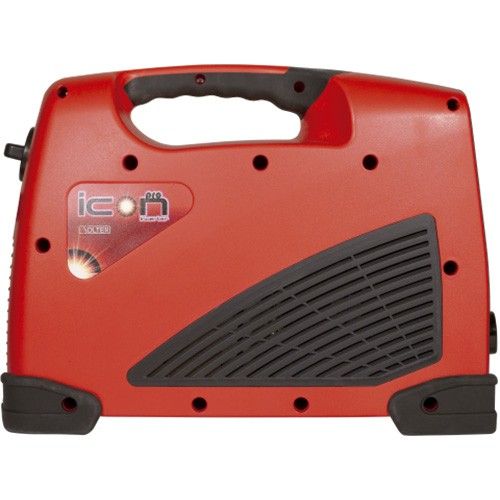

Kit inverter TIG welder ICONTIG PRO 2220 HF PULSE Solter
HF TIG-DC 220AMP 80% 1PH
2324030 | |
2216 |
Estimated Delivery 2/3 working days - does not accept payment on delivery
Warning: Last items in stock!
Availability date:
Customer ratings and reviews
Download
More info
Tig Welder invest iCONTIG PRO offers the best balance between precision and power. It is a TIG equipment oldadura all kinds of carbon and stainless steels and welding of all types of coated electrodes such as rutile, basic and stainless. Ideal for use in c alderería, gas and liquids pipelines, storage, maintenance work in the industry, etc.
For its DDR patented, innovative for its great capacity under intense conditions and demanding environments and for its unmatched results in reliability, performance and power building design, this is undoubtedly the best choice for the most demanding professionals.
It includes torch and clamp mass set. Excludes briefcase.
MMA welding intensity | 200A |
MMA yield 40 (20) | 60% (75%) |
MMA usable electrodes | 1.6 to 4.00 mm |
TIG welding intensity | 220A |
Performance TIG 40 (20) | 80% (90%) |
Usable TIG electrodes | 1.0 to 3.2 mm |
Setting range MMA | 10 - 200A (20,4 - 28,0V) |
Intensity MMA 60% / 100% at 40 | 250A / 150A |
Setting range TIG | 10 - 220A (10.4 - 18,8V) |
TIG intensity 60% / 100% at 40 | 200A (80%) / 160A |
Welding equipment INVERTER SOLTER ICONTIG technology, achieved with a very compact and lightweight form a great power and flexibility. It can be applied universally to any type of welding materials as diverse as stainless steel, alloy steel or other steels, etc.
System DDR (Dual Density Reinforcement) The housing is made of high strength materials and thanks to the double injection special characteristics of durability and ergonomics (DDR system are achieved, Dual Density Reinforcement patented SOLTER).
This double injection rubber is exploited for three basic functions. First, we get a nice non-slip handle and touch. also takes advantage, this double injection to integrate a few feet and side protection at the base of the team, favoring stability thereof on slippery surfaces, and finally, in the non-visible part of the team, reinforces the attachment of electronic circuit preventing this receives accidental bumps.
The control panel has been designed so that changing parameters is very intuitive and fast. Not having to remember long sequences for modification of device parameters, it promotes better use of all the possibilities of this.
The device contains all necessary measures to ensure proper operation protections. Temperature sensors ensure that the components are kept within the operating range. Monitoring the supply voltage guarantees that the equipment operates within expected ranges, and in the case of exceeding them, is disconnected to prevent possible anomalies.
The device contains a smart ventilation system, which is only activated if the team is working or internal temperature is high. This will prevent the equipment we collect dust, reducing maintenance intervals. This does not means that the user must not be prudent in the generation of metal powder particles while using the computer.
The machine has an automatic shutdown for equipment protection, which is enabled when you are 15 minutes without working, automatically rearming when welding continues.
Connect the welding machine to a socket with grounding, if you use an extension cord network, verify that they are appropriate section to power equipment. The voltage must be 230 V} 15. Outside this voltage range the machine can not work. It is mandatory that the electrical outlet available ground connection.
The ICONTIG models are ready to run an electric generator. However these generators must meet a number of requirements. We recommend using generators with a constant power of at least 8kVA the asynchronous alternator type generator does not have enough power or output voltage is outside the boundaries of team work, can cause off the arc and consequently lost quality welding, in the worst case can cause damage to the equipment.
-
