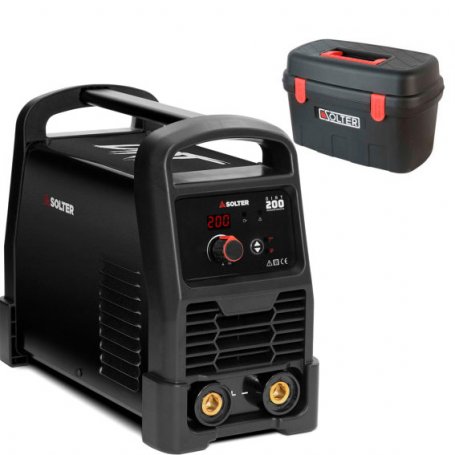

Kit equipment inverter 200 200Amp DIRT case CEL + XL Solter

Inverter Welder 200Amp to 60%, outfitted with welding and briefcase XL. Valid for generator. Lift-Arc TIG. All types of electrodes, including aluminum.

Main features:

The DIRT INVERTER models are coated electrode welding and TIG, thanks to the "arc-sense" technology may weld any type of electrode, even aluminum.

• "Arc-sense" new technology allowing any type of electrode welding
• Ease of use thanks to INVERTER technology providing continuous DC current.
• Minimum consumption for its high energy efficiency.
• Connectable to generators with a wide range of voltages used.
• Equipped with Arc-Force and Hot-Start devices.
• Pos ibili ty TIG welding.
• DIGITAL regulation.

Technical characteristics:

• Intensity MAX .: 200A
• 40 Yield: 40%
• 60% intensity (100%) at 40: 160A (135A)
• Setting range: 20 - 200A
• MMA usable electrodes: 1.6mm - 4.0mm
• Connection: 230V - 1Ph
• Operating range: 220 - 240V
• Load voltage: 72V
• Power consumption max .: 9Kva
• Fuse: 16A
• Ventilation: FORCED
• Weight: 6kg
• Panel regulation: DIGITAL SOLTER
• Standards: EN 960974-1, EN-60974-10
• Protection Index: IP21S
• Usable electrodes TIG: 1.6mm - 2.4mm
• Dimensions: 370x166x280
